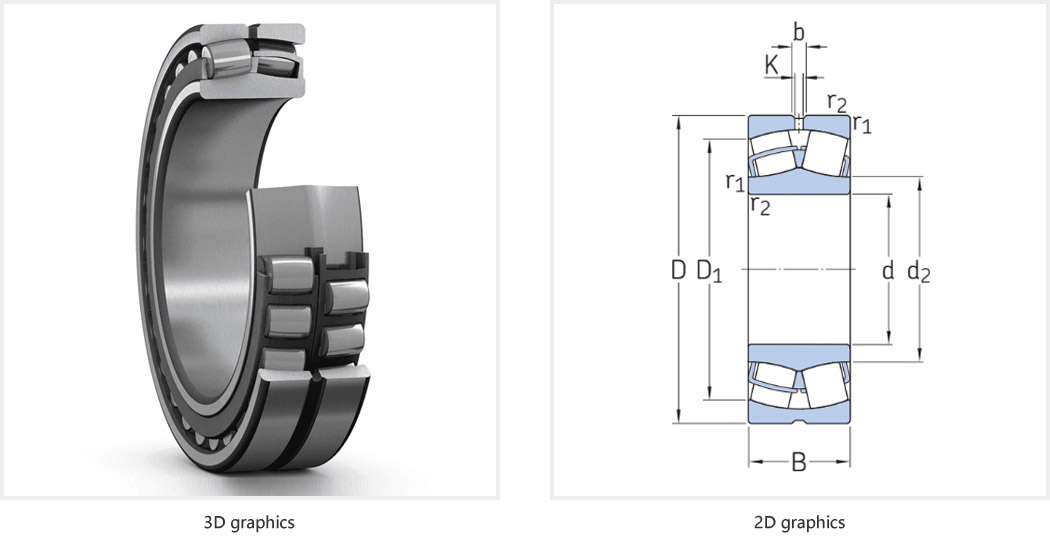

SPHERICAL ROLLER BEARINGS

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
22205/20 E	20	52	18	49.9	44	13 000	17 000
21305 CC	25	62	17	49.1	41.5	11 000	15 000
22205 E	25	52	18	49.9	44	13 000	17 000
22205 EK	25	52	18	49.9	44	13 000	17 000
BS2-2205-2RS/VT143	25	52	23	49.9	44		6 300
21306 CC	30	72	19	65.7	61	9 500	13 000
22206 E	30	62	20	66.1	58.5	10 000	14 000
22206 EK	30	62	20	66.1	58.5	10 000	14 000
BS2-2206-2RS/VT143	30	62	25	66.1	58.5		5 200
21307 CC	35	80	21	79.2	72	8 500	12 000
22207 E	35	72	23	88.8	83	9 000	12 000
22207 EK	35	72	23	88.8	83	9 000	12 000
BS2-2207-2RS/VT143	35	72	28	88.8	83		4 400
21308 E	40	90	23	107	108	7 000	9 500
21308 EKW	40	90	23	107	108	7 000	9 500
22208 E	40	80	23	98.5	91.5	8 000	11 000
22208 EK	40	80	23	98.5	91.5	8 000	11 000
22308 E	40	90	33	155	140	6 000	8 000
22308 E/VA405	40	90	33	155	140	6 000	8 000
22308 EK	40	90	33	155	140	6 000	8 000
BS2-2208-2RS/VT143	40	80	28	98.5	91.5		4 000
BS2-2208-2RSK/VT143	40	80	28	98.5	91.5		4 000
BS2-2308-2RS/VT143	40	90	38	155	140		4 000
21309 E	45	100	25	129	127	6 300	8 500
21309 EK	45	100	25	129	127	6 300	8 500
22209 E	45	85	23	104	100	7 500	10 000
22209 EK	45	85	23	104	100	7 500	10 000
22309 E	45	100	36	190	183	5 300	7 000
22309 E/VA405	45	100	36	190	183	5 300	7 000
22309 EK	45	100	36	190	183	5 300	7 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
BS2-2209-2RS/VT143	45	85	28	104	100		3 600
BS2-2209-2RSK/VT143	45	85	28	104	100		3 600
BS2-2309-2RS/VT143	45	100	42	190	183		3 400
21310 E	50	110	27	159	166	5 600	7 500
21310 EK	50	110	27	159	166	5 600	7 500
22210 E	50	90	23	107	108	7 000	9 500
22210 EK	50	90	23	107	108	7 000	9 500
22310 E	50	110	40	228	224	4 800	6 300
22310 E/VA405	50	110	40	228	224	4 800	6 300
22310 EK	50	110	40	228	224	4 800	6 300
BS2-2210-2RS/VT143	50	90	28	107	108		3 200
BS2-2210-2RSK/VT143	50	90	28	107	108		3 200
BS2-2310-2RS/VT143	50	110	45	228	224		3 100
21311 E	55	120	29	159	166	5 600	7 500
21311 EK	55	120	29	159	166	5 600	7 500
22211 E	55	100	25	129	127	6 300	8 500
22211 EK	55	100	25	129	127	6 300	8 500
22311 E	55	120	43	280	280	4 300	5 600
22311 E/VA405	55	120	43	280	280	4 300	5 600
22311 EK	55	120	43	280	280	4 300	5 600
22311 EK/VA405	55	120	43	280	280	4 300	5 600
BS2-2211-2RS/VT143	55	100	31	129	127		3 000
BS2-2211-2RSK/VT143	55	100	31	129	127		3 000
BS2-2311-2RS/VT143	55	120	49	280	280		2 800
21312 E	60	130	31	217	240	4 800	6 300
21312 EK	60	130	31	217	240	4 800	6 300
22212 E	60	110	28	159	166	5 600	7 500
22212 EK	60	110	28	159	166	5 600	7 500
22312 E	60	130	46	325	335	4 000	5 300
22312 E/VA405	60	130	46	325	335	4 000	5 300

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
22312 EK	60	130	46	325	335	4 000	5 300
22312 EK/VA405	60	130	46	325	335	4 000	5 300
BS2-2212-2RS/VT143	60	110	34	159	166		2 700
BS2-2212-2RSK/VT143	60	110	34	159	166		2 700
BS2-2312-2RS/VT143	60	130	53	325	335		2 500
21313 E	65	140	33	243	270	4 300	6 000
21313 EK	65	140	33	243	270	4 300	6 000
22213 E	65	120	31	198	216	5 000	7 000
22213 EK	65	120	31	198	216	5 000	7 000
22313 E	65	140	48	357	360	3 800	5 000
22313 E/VA405	65	140	48	357	360	3 800	5 000
22313 EK	65	140	48	357	360	3 800	5 000
22313 EK/VA405	65	140	48	357	360	3 800	5 000
24013 CC/W33/255927	65	100	35	137	173	4 300	6 300
24013-2RS5W/VT143	65	100	35	137	173		2 600
BS2-2213-2RS/VT143	65	120	38	198	216		2 500
BS2-2213-2RSK/VT143	65	120	38	198	216		2 500
BS2-2313-2RS/VT143	65	140	56	357	360		2 400
21314 E	70	150	35	291	325	4 000	5 600
21314 EK	70	150	35	291	325	4 000	5 600
22214 E	70	125	31	213	228	5 000	6 700
22214 EK	70	125	31	213	228	5 000	6 700
22314 E	70	150	51	413	430	3 400	4 500
22314 E/VA405	70	150	51	413	430	3 400	4 500
22314 EK	70	150	51	413	430	3 400	4 500
22314 EK/VA405	70	150	51	413	430	3 400	4 500
BS2-2214-2RS/VT143	70	125	38	213	228		2 400
BS2-2214-2RSK/VT143	70	125	38	213	228		2 400
BS2-2314-2RS/VT143	70	150	60	413	430		2 200
21315 E	75	160	37	291	325	4 000	5 600

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
21315 EK	75	160	37	291	325	4 000	5 600
22215 E	75	130	31	217	240	4 800	6 300
22215 EK	75	130	31	217	240	4 800	6 300
22315 E	75	160	55	462	475	3 200	4 300
22315 EJA/VA405	75	160	55	462	475	3 200	4 300
22315 EK	75	160	55	462	475	3 200	4 300
22315 EKJA/VA405	75	160	55	462	475	3 200	4 300
24015 CC/W33	75	115	40	181	232	3 800	5 300
24015-2RS5/VT143	75	115	40	181	232		2 300
BS2-2215-2RS/VT143	75	130	38	217	240		2 200
BS2-2215-2RSK/VT143	75	130	38	217	240		2 200
BS2-2315-2RS/VT143	75	160	64	462	475		2 100
BS2-2315-2RSK/VT143	75	160	64	462	475		2 100
21316 E	80	170	39	331	375	3 800	5 300
21316 EK	80	170	39	331	375	3 800	5 300
22216 E	80	140	33	243	270	4 300	6 000
22216 EK	80	140	33	243	270	4 300	6 000
22316 E	80	170	58	516	540	3 000	4 000
22316 EJA/VA405	80	170	58	516	540	3 000	4 000
22316 EK	80	170	58	516	540	3 000	4 000
22316 EKJA/VA405	80	170	58	516	540	3 000	4 000
BS2-2216-2RS/VT143	80	140	40	243	270		2 100
BS2-2216-2RSK/VT143	80	140	40	243	270		2 100
BS2-2316-2RS/VT143	80	170	67	516	540		2 000
BS2-2316-2RSK/VT143	80	170	67	516	540		2 000
21317 E	85	180	41	331	375	3 800	5 300
21317 EK	85	180	41	331	375	3 800	5 300
22217 E	85	150	36	291	325	4 000	5 600
22217 EK	85	150	36	291	325	4 000	5 600
22317 E	85	180	60	577	620	2 800	3 800

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
22317 EJA/VA405	85	180	60	577	620	2 800	3 800
22317 EJA/VA406	85	180	60	577	620	2 800	3 800
22317 EK	85	180	60	577	620	2 800	3 800
22317 EKJA/VA405	85	180	60	577	620	2 800	3 800
BS2-2217-2RS/VT143	85	150	44	291	325		1 900
BS2-2217-2RSK/VT143	85	150	44	291	325		1 900
BS2-2317-2RSK/VT143	85	180	69	577	620		1 900
21318 E	90	190	43	393	450	3 600	4 800
21318 EK	90	190	43	393	450	3 600	4 800
22218 E	90	160	40	331	375	3 800	5 300
22218 EK	90	160	40	331	375	3 800	5 300
22318 E	90	190	64	637	695	2 600	3 600
22318 EJA/VA405	90	190	64	637	695	2 600	3 600
22318 EK	90	190	64	637	695	2 600	3 600
22318 EKJA/VA405	90	190	64	637	695	2 600	3 600
23218 CC/W33	90	160	52.4	372	440	2 800	3 800
23218 CCK/W33	90	160	52.4	372	440	2 800	3 800
BS2-2218-2RS/VT143	90	160	48	331	375		1 900
BS2-2218-2RSK/VT143	90	160	48	331	375		1 900
BS2-2318-2RS5/VT143	90	190	73	637	695		1 700
BS2-2318-2RS5K/VT143	90	190	73	637	695		1 700
21319 E	95	200	45	433	490	3 400	4 500
21319 EK	95	200	45	433	490	3 400	4 500
22219 E	95	170	43	393	450	3 600	4 800
22219 EK	95	170	43	393	450	3 600	4 800
22319 E	95	200	67	699	765	2 600	3 400
22319 EJA/VA405	95	200	67	699	765	2 600	3 400
22319 EK	95	200	67	699	765	2 600	3 400
22319 EKJA/VA405	95	200	67	699	765	2 600	3 400
BS2-2219-2RS/VT143	95	170	51	393	450		1 700

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
21320 E	100	215	47	433	490	3 400	4 500
21320 EK	100	215	47	433	490	3 400	4 500
22220 E	100	180	46	433	490	3 400	4 500
22220 EK	100	180	46	433	490	3 400	4 500
22320 E	100	215	73	847	950	2 400	3 000
22320 EJA/VA405	100	215	73	847	950	2 400	3 000
22320 EJA/VA406	100	215	73	847	950	2 400	3 000
22320 EK	100	215	73	847	950	2 400	3 000
22320 EKJA/VA405	100	215	73	847	950	2 400	3 000
23120 CC/W33	100	165	52	385	490	3 000	4 000
23120 CCK/W33	100	165	52	385	490	3 000	4 000
23120-2RS5/VT143	100	165	52	386	490		1 700
23220 CC/W33	100	180	60.3	498	600	2 400	3 400
23220 CCK/W33	100	180	60.3	498	600	2 400	3 400
23220-2RS/VT143	100	180	60.3	499	600		1 700
23220-2RS5/VT143	100	180	60.3	499	600		1 700
23220/C3W33VA9B1	100	180	60.3		600		20
23220/C4W33VA9B1	100	180	60.3		600		20
24020 CC/W33	100	150	50	296	415	2 800	4 000
24020 CCK30/W33	100	150	50	296	415	2 800	4 000
24020-2RS5/VT143	100	150	50	296	415		1 700
24120 CC/W33	100	165	65	468	640	2 400	3 200
24120 CCK30/W33	100	165	65	468	640	2 400	3 200
24120-2RS5/VT143	100	165	65	470	640		1 700
24120-2RS5W/C3GEM9	100	165	65	470	640		225
BS2-2220-2RS5/VT143	100	180	55	433	490		1 600
BS2-2220-2RS5K/VT143	100	180	55	433	490		1 600
BS2-2320-2CS5/VT143	100	215	82	847	950		750
BS2-2320-2CS5K/VT143	100	215	82	847	950		750
22222 E	110	200	53	572	640	3 000	4 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
22222 EK	110	200	53	572	640	3 000	4 000
22322 E	110	240	80	989	1 120	2 000	2 800
22322 EJA/VA405	110	240	80	989	1 120	2 000	2 800
22322 EJA/VA406	110	240	80	989	1 120	2 000	2 800
22322 EK	110	240	80	989	1 120	2 000	2 800
22322 EKJA/VA405	110	240	80	989	1 120	2 000	2 800
23022 CC/W33	110	170	45	326	440	3 400	4 300
23022 CCK/W33	110	170	45	326	440	3 400	4 300
23022-2RS/VT143	110	170	45	326	440		1 500
23122 CC/W33	110	180	56	450	585	2 800	3 600
23122 CCK/W33	110	180	56	450	585	2 800	3 600
23122-2CS5/VT143	110	180	56	451	585		800
23122-2CS5K/VT143	110	180	56	451	585		800
23122/C3W33VA9B1	110	180	56		585		20
23122/C4W33VA9B1	110	180	56		585		20
23222 CC/W33	110	200	69.8	626	765	2 200	3 200
23222 CCK/W33	110	200	69.8	626	765	2 200	3 200
23222-2CS5/VT143	110	200	69.8	627	765		750
23222-2CS5K/VT143	110	200	69.8	627	765		750
24022 CC/W33	110	170	60	437	620	2 400	3 600
24022 CCK30/W33	110	170	60	437	620	2 400	3 600
24022-2RS5/VT143	110	170	60	438	620		1 600
24122 CC/W33	110	180	69	539	750	2 000	3 000
24122 CCK30/W33	110	180	69	539	750	2 000	3 000
24122-2CS5/VT143	110	180	69	540	750		800
24122/C3W33VA9B1	110	180	69		750		20
24122/C4W33VA9B1	110	180	69		750		20
BS2-2222-2RS5/VT143	110	200	63	572	640		1 500
BS2-2222-2RS5K/VT143	110	200	63	572	640		1 500
22224 E	120	215	58	652	780	2 800	3 800

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
22224 EK	120	215	58	652	780	2 800	3 800
22324 CC/W33	120	260	86	1 019	1 120	2 000	2 600
22324 CCJA/W33VA405	120	260	86	1 019	1 120	2 000	2 600
22324 CCJA/W33VA406	120	260	86	1 019	1 120	2 000	2 600
22324 CCK/W33	120	260	86	1 019	1 120	2 000	2 600
22324 CCKJA/W33VA405	120	260	86	1 019	1 120	2 000	2 600
22324-2CS5/VT143	120	260	86	1 022	1 120		640
22324-2CS5K/VT143	120	260	86	1 022	1 120		640
22324/C3W33VA9B1	120	260	86		1 120		20
22324/C4W33VA9B1	120	260	86		1 120		20
23024 CC/W33	120	180	46	366	500	3 200	4 000
23024 CCK/W33	120	180	46	366	500	3 200	4 000
23024-2RS5/VT143	120	180	46	367	500		1 400
23124 CC/W33	120	200	62	534	695	2 600	3 400
23124 CCK/W33	120	200	62	534	695	2 600	3 400
23124-2CS5/VT143	120	200	62	535	695		720
23124-2CS5K/VT143	120	200	62	535	695		720
23224 CC/W33	120	215	76	732	930	2 000	2 800
23224 CCK/W33	120	215	76	732	930	2 000	2 800
23224-2CS5/VT143	120	215	76	734	930		690
23224-2CS5K/VT143	120	215	76	734	930		690
24024 CC/W33	120	180	60	456	670	2 400	3 400
24024 CCK30/W33	120	180	60	456	670	2 400	3 400
24024-2CS5/VT143	120	180	60	457	670		730
24024/C3W33VA9B1	120	180	60		670		20
24024/C4W33VA9B1	120	180	60		670		20
24124 CC/W33	120	200	80	679	950	1 900	2 600
24124 CCK30/W33	120	200	80	679	950	1 900	2 600
24124-2CS5/VT143	120	200	80	680	950		720
BS2-2224-2RS5/VT143	120	215	69	652	780		1 400

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
BS2-2224-2RS5K/VT143	120	215	69	652	780		1 400
22226 E	130	230	64	758	930	2 600	3 600
22226 EK	130	230	64	758	930	2 600	3 600
22326 CC/C4W33VA991	130	280	93	1 176	1 320	1 800	3 600
22326 CC/W33	130	280	93	1 176	1 320	1 800	2 400
22326 CCJA/W33VA405	130	280	93	1 176	1 320	1 800	2 400
22326 CCJA/W33VA406	130	280	93	1 176	1 320	1 800	2 400
22326 CCK/W33	130	280	93	1 176	1 320	1 800	2 400
22326 CCKJA/W33VA405	130	280	93	1 176	1 320	1 800	2 400
22326-2CS5/VT143	130	280	93	1 178	1 320		590
22326-2CS5K/VT143	130	280	93	1 178	1 320		590
229750 J/C3R505	130	220	73	564	930	1 600	2 400
23026 CC/W33	130	200	52	452	610	2 800	3 600
23026 CCK/W33	130	200	52	452	610	2 800	3 600
23026-2CS5/VT143	130	200	52	452	610		800
23026-2CS5K/VT143	130	200	52	452	610		800
23126 CC/W33	130	210	64	586	780	2 400	3 200
23126 CCK/W33	130	210	64	586	780	2 400	3 200
23126-2CS5K/VT143	130	210	64	587	780		670
23226 CC/W33	130	230	80	826	1 060	1 900	2 600
23226 CCK/W33	130	230	80	826	1 060	1 900	2 600
23226-2CS5/VT143	130	230	80	828	1 060		640
23226-2CS5K/VT143	130	230	80	828	1 060		640
24026 CC/W33	130	200	69	569	815	2 000	3 000
24026 CCK30/W33	130	200	69	569	815	2 000	3 000
24026-2CS5/VT143	130	200	69	570	830		670
24026/C3W33VA9B1	130	200	69		815		20
24026/C4W33VA9B1	130	200	69		815		20
24126 CC/W33	130	210	80	699	1 000	1 700	2 400
24126 CCK30/W33	130	210	80	699	1 000	1 700	2 400

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
24126-2CS5/VT143	130	210	80	701	1 000		670
24126/C3W33VA9B1	130	210	80		1 000		20
24126/C4W33VA9B1	130	210	80		1 000		20
BS2-2226-2CS5/VT143	130	230	75	758	930		700
BS2-2226-2CS5K/VT143	130	230	75	758	930		700
22228 CC/W33	140	250	68	743	900	2 400	3 200
22228 CCK/W33	140	250	68	743	900	2 400	3 200
22228-2CS5/VT143	140	250	68	744	900		670
22228-2CS5K/VT143	140	250	68	744	900		670
22328 CC/C4W33VA991	140	300	102	1 357	1 560	1 700	3 400
22328 CC/W33	140	300	102	1 357	1 560	1 700	2 200
22328 CCJA/W33VA405	140	300	102	1 357	1 560	1 700	2 200
22328 CCJA/W33VA406	140	300	102	1 357	1 560	1 700	2 200
22328 CCK/W33	140	300	102	1 357	1 560	1 700	2 200
22328 CCKJA/W33VA405	140	300	102	1 357	1 560	1 700	2 200
22328-2CS5/VT143	140	300	102	1 359	1 560		560
22328-2CS5K/VT143	140	300	102	1 359	1 560		560
23028 CC/W33	140	210	53	485	680	2 600	3 400
23028 CCK/W33	140	210	53	485	680	2 600	3 400
23028-2CS5/VT143	140	210	53	485	680		700
23028-2CS5K/VT143	140	210	53	485	680		700
23128 CC/W33	140	225	68	659	900	2 200	2 800
23128 CCK/W33	140	225	68	659	900	2 200	2 800
23128-2CS5K/VT143	140	225	68	660	900		630
23228 CC/W33	140	250	88	962	1 250	1 700	2 400
23228 CCK/W33	140	250	88	962	1 250	1 700	2 400
23228-2CS5/VT143	140	250	88	963	1 250		670
23228-2CS5K/VT143	140	250	88	963	1 250		670
24028 CC/W33	140	210	69	600	900	2 000	2 800
24028 CCK30/W33	140	210	69	600	900	2 000	2 800

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
24028-2CS5/VT143	140	210	69	601	900		620
24028/C3W33VA9B1	140	210	69		900		20
24028/C4W33VA9B1	140	210	69		900		20
24128 CC/W33	140	225	85	796	1 160	1 600	2 200
24128 CCK30/W33	140	225	85	796	1 160	1 600	2 200
24128-2CS5/VT143	140	225	85	797	1 160		620
24128-2CS5K30/VT143	140	225	85	797	1 160		620
24128/C3W33VA9B1	140	225	85		1 160		20
24128/C4W33VA9B1	140	225	85		1 160		20
22230 CC/W33	150	270	73	898	1 080	2 200	3 000
22230 CCK/W33	150	270	73	898	1 080	2 200	3 000
22230-2CS5/VT143	150	270	73	899	1 080		630
22230-2CS5K/VT143	150	270	73	899	1 080		630
22330 CC/C4W33VA991	150	320	108	1 539	1 760	1 600	3 100
22330 CC/W33	150	320	108	1 539	1 760	1 600	2 000
22330 CCJA/W33VA405	150	320	108	1 539	1 760	1 600	2 000
22330 CCJA/W33VA406	150	320	108	1 539	1 760	1 600	2 000
22330 CCK/W33	150	320	108	1 539	1 760	1 600	2 000
22330 CCKJA/W33VA405	150	320	108	1 539	1 760	1 600	2 000
22330-2CS5/VT143	150	320	108	1 541	1 760		520
22330-2CS5K/VT143	150	320	108	1 541	1 760		520
23030 CC/W33	150	225	56	531	750	2 400	3 200
23030 CCK/W33	150	225	56	531	750	2 400	3 200
23030-2CS5/VT143	150	225	56	532	750		670
23030-2CS5K/VT143	150	225	56	532	750		670
23030/C3W33VA9B1	150	225	56		750		20
23030/C4W33VA9B1	150	225	56		750		20
23130 CC/W33	150	250	80	883	1 200	2 000	2 600
23130 CCK/W33	150	250	80	883	1 200	2 000	2 600
23130-2CS5/VT143	150	250	80	884	1 200		560

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23130-2CS5K/VT143	150	250	80	884	1 200		560
23230 CC/W33	150	270	96	1 129	1 460	1 600	2 200
23230 CCK/W33	150	270	96	1 129	1 460	1 600	2 200
23230-2CS5/VT143	150	270	96	1 132	1 460		550
23230-2CS5K/VT143	150	270	96	1 132	1 460		550
24030 CC/W33	150	225	75	680	1 040	1 800	2 600
24030 CCK30/W33	150	225	75	680	1 040	1 800	2 600
24030-2CS5/VT143	150	225	75	681	1 040		580
24030/C3W33VA9B1	150	225	75		1 040		20
24030/C4W33VA9B1	150	225	75		1 040		20
24130 CC/W33	150	250	100	1 054	1 530	1 400	2 000
24130 CCK30/W33	150	250	100	1 054	1 530	1 400	2 000
24130-2CS5/VT143	150	250	100	1 056	1 530		580
24130-2CS5K30/VT143	150	250	100	1 056	1 530		580
24130/C3W33VA9B1	150	250	100		1 530		20
24130/C4W33VA9B1	150	250	100		1 530		20
22232 CC/W33	160	290	80	1 043	1 290	2 000	2 800
22232 CCK/W33	160	290	80	1 043	1 290	2 000	2 800
22232-2CS5/VT143	160	290	80	1 044	1 290		600
22232-2CS5K/VT143	160	290	80	1 044	1 290		600
22332 CC/C4W33VA991	160	340	114	1 680	1 960	1 500	2 900
22332 CC/W33	160	340	114	1 680	1 960	1 500	1 900
22332 CCJA/W33VA405	160	340	114	1 680	1 960	1 500	1 900
22332 CCJA/W33VA406	160	340	114	1 680	1 960	1 500	1 900
22332 CCK/W33	160	340	114	1 680	1 960	1 500	1 900
22332 CCKJA/W33VA405	160	340	114	1 680	1 960	1 500	1 900
22332-2CS5/VT143	160	340	114	1 683	1 960		490
22332-2CS5K/VT143	160	340	114	1 683	1 960		490
22332/C3W33VA9B1	160	340	114		1 960		20
22332/C4W33VA9B1	160	340	114		1 960		20

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23032 CC/W33	160	240	60	614	880	2 400	3 000
23032 CCK/W33	160	240	60	614	880	2 400	3 000
23032-2CS5/VT143	160	240	60	615	880		670
23032-2CS5K/VT143	160	240	60	615	880		670
23132 CC/W33	160	270	86	1 029	1 370	1 900	2 400
23132 CCK/W33	160	270	86	1 029	1 370	1 900	2 400
23132-2CS5/VT143	160	270	86	1 030	1 400		530
23132-2CS5K/VT143	160	270	86	1 030	1 400		530
23232 CC/W33	160	290	104	1 281	1 660	1 500	2 200
23232 CCK/W33	160	290	104	1 281	1 660	1 500	2 200
24032 CC/W33	160	240	80	783	1 200	1 700	2 400
24032 CCK30/W33	160	240	80	783	1 200	1 700	2 400
24032-2CS5/VT143	160	240	80	784	1 200		550
24032/C3W33VA9B1	160	240	80		1 200		20
24032/C4W33VA9B1	160	240	80		1 200		20
24132 CC/W33	160	270	109	1 227	1 760	1 300	1 900
24132 CCK30/W33	160	270	109	1 227	1 760	1 300	1 900
24132-2CS5/VT143	160	270	109	1 229	1 760		540
22234 CC/W33	170	310	86	1 183	1 460	1 900	2 600
22234 CCK/W33	170	310	86	1 183	1 460	1 900	2 600
22234-2CS5/VT143	170	310	86	1 185	1 460		500
22234-2CS5K/VT143	170	310	86	1 185	1 460		500
22334 CC/W33	170	360	120	1 863	2 160	1 400	1 800
22334 CCJA/W33VA405	170	360	120	1 863	2 160	1 400	1 800
22334 CCJA/W33VA406	170	360	120	1 863	2 160	1 400	1 800
22334 CCK/W33	170	360	120	1 863	2 160	1 400	1 800
22334 CCKJA/W33VA405	170	360	120	1 863	2 160	1 400	1 800
23034 CC/W33	170	260	67	745	1 060	2 200	2 800
23034 CCK/W33	170	260	67	745	1 060	2 200	2 800
23034-2CS5/VT143	170	260	67	746	1 080		630

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23034-2CS5K/VT143	170	260	67	746	1 080		630
23134 CC/W33	170	280	88	1 086	1 500	1 800	2 400
23134 CCK/W33	170	280	88	1 086	1 500	1 800	2 400
23134-2CS5/VT143	170	280	88	1 088	1 500		500
23134-2CS5K/VT143	170	280	88	1 088	1 500		500
23234 CC/W33	170	310	110	1 472	1 930	1 400	2 000
23234 CCK/W33	170	310	110	1 472	1 930	1 400	2 000
23234-2CS5K/VT143	170	310	110	1 476	1 960		480
24034 CC/W33	170	260	90	963	1 460	1 600	2 400
24034 CCK30/W33	170	260	90	963	1 460	1 600	2 400
24034-2CS5/VT143	170	260	90	966	1 500		510
24034/C3W33VA9B1	170	260	90		1 460		20
24034/C4W33VA9B1	170	260	90		1 460		20
24134 CC/W33	170	280	109	1 270	1 860	1 200	1 800
24134 CCK30/W33	170	280	109	1 270	1 860	1 200	1 800
24134-2CS5/VT143	170	280	109	1 273	1 860		510
22236 CC/W33	180	320	86	1 237	1 560	1 800	2 600
22236 CCK/W33	180	320	86	1 237	1 560	1 800	2 600
22236-2CS5/VT143	180	320	86	1 239	1 560		530
22236-2CS5K/VT143	180	320	86	1 239	1 560		530
22336 CC/C4W33VA991	180	380	126	2 077	2 450	1 300	2 700
22336 CC/W33	180	380	126	2 077	2 450	1 300	1 700
22336 CCJA/W33VA405	180	380	126	2 077	2 450	1 300	1 700
22336 CCJA/W33VA406	180	380	126	2 077	2 450	1 300	1 700
22336 CCK/W33	180	380	126	2 077	2 450	1 300	1 700
22336 CCKJA/W33VA405	180	380	126	2 077	2 450	1 300	1 700
23036 CC/W33	180	280	74	883	1 250	2 000	2 600
23036 CCK/W33	180	280	74	883	1 250	2 000	2 600
23036-2CS5/VT143	180	280	74	884	1 270		560
23036-2CS5K/VT143	180	280	74	884	1 270		560

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23136 CC/W33	180	300	96	1 263	1 760	1 700	2 200
23136 CCK/W33	180	300	96	1 263	1 760	1 700	2 200
23136-2CS5/VT143	180	300	96	1 264	1 800		470
23136-2CS5K/VT143	180	300	96	1 264	1 800		470
23236 CC/W33	180	320	112	1 557	2 120	1 300	1 900
23236 CCK/W33	180	320	112	1 557	2 120	1 300	1 900
23236-2CS5/VT143	180	320	112	1 560	2 120		460
23236-2CS5K/VT143	180	320	112	1 560	2 120		460
23936 CC/W33	180	250	52	519	830	2 600	2 800
23936 CCK/W33	180	250	52	519	830	2 600	2 800
24036 CC/W33	180	280	100	1 134	1 730	1 500	2 200
24036 CCK30/W33	180	280	100	1 134	1 730	1 500	2 200
24036-2CS5/VT143	180	280	100	1 136	1 730		490
24136 CC/C4W33VA991	180	300	118	1 449	2 160	1 100	2 400
24136 CC/W33	180	300	118	1 449	2 160	1 100	1 600
24136 CCK30/W33	180	300	118	1 449	2 160	1 100	1 600
24136-2CS5/VT143	180	300	118	1 452	2 160		480
22238 CC/W33	190	340	92	1 342	1 700	1 700	2 400
22238 CCK/W33	190	340	92	1 342	1 700	1 700	2 400
22238-2CS5/VT143	190	340	92	1 345	1 700		480
22238-2CS5K/VT143	190	340	92	1 345	1 700		480
22338 CC/W33	190	400	132	2 232	2 650	1 200	1 600
22338 CCJA/W33VA405	190	400	132	2 232	2 650	1 200	1 600
22338 CCJA/W33VA406	190	400	132	2 232	2 650	1 200	1 600
22338 CCK/W33	190	400	132	2 232	2 650	1 200	1 600
22338 CCKJA/W33VA405	190	400	132	2 232	2 650	1 200	1 600
23038 CC/W33	190	290	75	916	1 340	1 900	2 400
23038 CCK/W33	190	290	75	916	1 340	1 900	2 400
23038-2CS5K/VT143	190	290	75	917	1 340		520
23138 CC/W33	190	320	104	1 456	2 080	1 500	2 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23138 CCK/W33	190	320	104	1 456	2 080	1 500	2 000
23138-2CS5/VT143	190	320	104	1 458	2 080		440
23138-2CS5K/VT143	190	320	104	1 458	2 080		440
23238 CC/W33	190	340	120	1 759	2 400	1 300	1 800
23238 CCK/W33	190	340	120	1 759	2 400	1 300	1 800
23238-2CS5/VT143	190	340	120	1 762	2 400		430
23238-2CS5K/VT143	190	340	120	1 762	2 400		430
23938 CC/W33	190	260	52	499	800	2 400	2 600
23938 CCK/W33	190	260	52	499	800	2 400	2 600
24038 CC/W33	190	290	100	1 164	1 800	1 400	2 000
24038 CCK30/W33	190	290	100	1 164	1 800	1 400	2 000
24038-2CS5K30/VT143	190	290	100	1 165	1 800		460
24138 CC/W33	190	320	128	1 652	2 500	1 100	1 500
24138 CCK30/W33	190	320	128	1 652	2 500	1 100	1 500
24138-2CS5/VT143	190	320	128	1 655	2 500		450
22240 CC/W33	200	360	98	1 526	1 930	1 600	2 200
22240 CCK/W33	200	360	98	1 526	1 930	1 600	2 200
22240-2CS5/VT143	200	360	98	1 529	1 930		430
22240-2CS5K/VT143	200	360	98	1 529	1 930		430
22340 CC/C4W33VA991	200	420	138	2 439	2 900	1 200	2 400
22340 CC/W33	200	420	138	2 439	2 900	1 200	1 500
22340 CCJA/W33VA405	200	420	138	2 439	2 900	1 200	1 500
22340 CCJA/W33VA406	200	420	138	2 439	2 900	1 200	1 500
22340 CCK/W33	200	420	138	2 439	2 900	1 200	1 500
22340 CCKJA/W33VA405	200	420	138	2 439	2 900	1 200	1 500
22340-2CS5K/VT143	200	420	138	2 443	2 900		390
23040 CC/W33	200	310	82	1 058	1 530	1 800	2 200
23040 CCK/W33	200	310	82	1 058	1 530	1 800	2 200
23040-2CS5/VT143	200	310	82	1 059	1 530		480
23040-2CS5K/VT143	200	310	82	1 059	1 530		480

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23140 CC/W33	200	340	112	1 665	2 360	1 500	1 900
23140 CCK/W33	200	340	112	1 665	2 360	1 500	1 900
23140-2CS5/VT143	200	340	112	1 668	2 360		420
23140-2CS5K/VT143	200	340	112	1 668	2 360		420
23240 CC/W33	200	360	128	1 947	2 700	1 200	1 700
23240 CCK/W33	200	360	128	1 947	2 700	1 200	1 700
23240-2CS5/VT143	200	360	128	1 950	2 700		410
23240-2CS5K/VT143	200	360	128	1 950	2 700		410
23940 CC/W33	200	280	60	651	1 040	2 200	2 400
23940 CCK/W33	200	280	60	651	1 040	2 200	2 400
24040 CC/W33	200	310	109	1 353	2 120	1 300	1 900
24040 CCK30/W33	200	310	109	1 353	2 120	1 300	1 900
24040-2CS5K30/VT143	200	310	109	1 354	2 120		430
24140 CC/W33	200	340	140	1 865	2 800	1 000	1 400
24140 CCK30/W33	200	340	140	1 865	2 800	1 000	1 400
24140-2CS5/VT143	200	340	140	1 871	2 800		430
24140-2CS5K30/C3HGEA8	200	340	140	1 871	2 800		110
22244 CC/W33	220	400	108	1 835	2 360	1 500	2 000
22244 CCK/W33	220	400	108	1 835	2 360	1 500	2 000
22244-2CS5/VT143	220	400	108	1 839	2 360		380
22244-2CS5K/VT143	220	400	108	1 839	2 360		380
22344 CC/C4W33VA991	220	460	145	2 839	3 450	1 000	2 100
22344 CC/W33	220	460	145	2 839	3 450	1 000	1 400
22344 CCJA/W33VA405	220	460	145	2 839	3 450	1 000	1 400
22344 CCK/W33	220	460	145	2 839	3 450	1 000	1 400
22344 CCKJA/W33VA405	220	460	145	2 839	3 450	1 000	1 400
22344-2CS5/VT143	220	460	145	2 844	3 450		350
22344-2CS5K/VT143	220	460	145	2 844	3 450		350
23044 CC/W33	220	340	90	1 261	1 860	1 600	2 000
23044 CCK/W33	220	340	90	1 261	1 860	1 600	2 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23044-2CS5/VT143	220	340	90	1 262	1 860		430
23044-2CS5K/VT143	220	340	90	1 262	1 860		430
23144 CC/W33	220	370	120	1 888	2 750	1 300	1 700
23144 CCK/W33	220	370	120	1 888	2 750	1 300	1 700
23144-2CS5/VT143	220	370	120	1 891	2 750		380
23144-2CS5K/VT143	220	370	120	1 891	2 750		380
23244 CC/W33	220	400	144	2 485	3 450	1 100	1 500
23244 CCK/W33	220	400	144	2 485	3 450	1 100	1 500
23244-2CS5K/VT143	220	400	144	2 489	3 450		370
23944 CC/W33	220	300	60	661	1 080	2 000	2 200
23944 CCK/W33	220	300	60	661	1 080	2 000	2 200
23944-2CS/VT143	220	300	60	662	1 080		600
23944-2CS5/VT143	220	300	60	662	1 080		600
24044 CC/C4W33VA991	220	340	118	1 628	2 600	1 200	2 600
24044 CC/W33	220	340	118	1 628	2 600	1 200	1 700
24044 CCK30/W33	220	340	118	1 628	2 600	1 200	1 700
24044-2CS5K30/VT143	220	340	118	1 629	2 600		390
24144 CC/W33	220	370	150	2 197	3 350	850	1 200
24144 CCK30/W33	220	370	150	2 197	3 350	850	1 200
24144-2CS5K30/VT143	220	370	150	2 199	3 350		390
22248 CC/W33	240	440	120	2 258	3 000	1 300	1 800
22248 CCK/W33	240	440	120	2 258	3 000	1 300	1 800
22348 CC/C4W33VA991	240	500	155	3 229	4 000	950	1 900
22348 CC/W33	240	500	155	3 229	4 000	950	1 300
22348 CCJA/W33VA405	240	500	155	3 229	4 000	950	1 300
22348 CCK/W33	240	500	155	3 229	4 000	950	1 300
22348 CCKJA/W33VA405	240	500	155	3 229	4 000	950	1 300
23048 CC/W33	240	360	92	1 340	2 080	1 500	1 900
23048 CCK/W33	240	360	92	1 340	2 080	1 500	1 900
23048-2CS5/VT143	240	360	92	1 341	2 080		400

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23048-2CS5K/VT143	240	360	92	1 341	2 080		400
23148 CC/W33	240	400	128	2 187	3 200	1 200	1 600
23148 CCK/W33	240	400	128	2 187	3 200	1 200	1 600
23148-2CS5/VT143	240	400	128	2 190	3 200		350
23148-2CS5K/VT143	240	400	128	2 190	3 200		350
23248 CAC/W33	240	440	160	2 799	3 800	950	1 300
23248 CC/C4W33VA991	240	440	160	3 042	4 300	950	2 000
23248 CC/W33	240	440	160	3 042	4 300	950	1 300
23248 CCK/W33	240	440	160	3 042	4 300	950	1 300
23948 CC/W33	240	320	60	685	1 160	1 900	2 000
23948 CCK/W33	240	320	60	685	1 160	1 900	2 000
24048 CC/W33	240	360	118	1 663	2 700	1 100	1 600
24048 CCK30/W33	240	360	118	1 663	2 700	1 100	1 600
24048-2CS5/VT143	240	360	118	1 666	2 700		360
24048-2CS5K30/VT143	240	360	118	1 666	2 700		360
24148 CC/W33	240	400	160	2 489	3 900	750	1 100
24148 CCK30/W33	240	400	160	2 489	3 900	750	1 100
24148-2CS5/VT143	240	400	160	2 491	3 900		360
24148-2CS5K30/VT143	240	400	160	2 491	3 900		360
22252 CAC/W33	260	480	130	2 722	3 550	1 200	1 600
22252 CACK/W33	260	480	130	2 722	3 550	1 200	1 600
22252 CC/W33	260	480	130	2 722	3 550	1 200	1 600
22252 CCK/W33	260	480	130	2 722	3 550	1 200	1 600
22352 CC/C4W33VA991	260	540	165	3 680	4 550	850	1 800
22352 CC/W33	260	540	165	3 680	4 550	850	1 100
22352 CCK/W33	260	540	165	3 680	4 550	850	1 100
23052 CC/W33	260	400	104	1 675	2 550	1 300	1 700
23052 CCK/W33	260	400	104	1 675	2 550	1 300	1 700
23052-2CS5/VT143	260	400	104	1 677	2 550		360
23052-2CS5K/VT143	260	400	104	1 677	2 550		360

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23152 CAC/W33	260	440	144	2 568	3 750	1 100	1 400
23152 CACK/W33	260	440	144	2 568	3 750	1 100	1 400
23152 CC/W33	260	440	144	2 664	3 900	1 100	1 400
23152 CCK/W33	260	440	144	2 664	3 900	1 100	1 400
23152-2CS5/VT143	260	440	144	2 668	3 900		320
23152-2CS5K/VT143	260	440	144	2 668	3 900		320
23252 CAC/W33	260	480	174	3 395	4 750	850	1 200
23252 CACK/W33	260	480	174	3 395	4 750	850	1 200
23252 CC/W33	260	480	174	3 395	4 750	850	1 200
23252 CCK/W33	260	480	174	3 395	4 750	850	1 200
23952 CC/W33	260	360	75	1 055	1 800	1 700	1 900
23952 CCK/W33	260	360	75	1 055	1 800	1 700	1 900
24052 CC/C4W33VA991	260	400	140	2 135	3 450	1 000	2 200
24052 CC/W33	260	400	140	2 135	3 450	1 000	1 400
24052 CCK30/W33	260	400	140	2 135	3 450	1 000	1 400
24052-2CS5K30/VT143	260	400	140	2 138	3 450		330
24152 CC/C4W33VA991	260	440	180	3 086	4 800	670	1 500
24152 CC/W33	260	440	180	3 086	4 800	670	950
24152 CCK30/W33	260	440	180	3 086	4 800	670	950
24152-2CS5/VT143	260	440	180	3 092	4 900		330
22256 CC/W33	280	500	130	2 795	3 750	1 100	1 500
22256 CCK/W33	280	500	130	2 795	3 750	1 100	1 500
22356 CC/W33	280	580	175	4 158	5 200	800	1 100
22356 CCK/W33	280	580	175	4 158	5 200	800	1 100
23056 CAC/W33	280	420	106	1 747	2 750	1 300	1 600
23056 CACK/W33	280	420	106	1 747	2 750	1 300	1 600
23056 CC/W33	280	420	106	1 797	2 850	1 300	1 600
23056 CCK/W33	280	420	106	1 797	2 850	1 300	1 600
23156 CAC/W33	280	460	146	2 688	4 000	1 000	1 300
23156 CACK/W33	280	460	146	2 688	4 000	1 000	1 300

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23156 CC/W33	280	460	146	2 784	4 250	1 000	1 300
23156 CCK/W33	280	460	146	2 784	4 250	1 000	1 300
23156-2CS5/VT143	280	460	146	2 788	4 250		300
23156-2CS5K/VT143	280	460	146	2 788	4 250		300
23256 CAC/W33	280	500	176	3 425	4 900	800	1 100
23256 CACK/W33	280	500	176	3 425	4 900	800	1 100
23256 CC/W33	280	500	176	3 425	4 900	800	1 100
23256 CCK/W33	280	500	176	3 425	4 900	800	1 100
23956 CC/W33	280	380	75	1 016	1 760	1 600	1 700
23956 CCK/W33	280	380	75	1 016	1 760	1 600	1 700
24056 CC/W33	280	420	140	2 248	3 800	950	1 400
24056 CCK30/W33	280	420	140	2 248	3 800	950	1 400
24056-2CS5K30/VT143	280	420	140	2 251	3 800		310
24156 CC/C4W33VA991	280	460	180	3 183	5 100	630	1 300
24156 CC/W33	280	460	180	3 183	5 100	630	900
24156 CCK30/W33	280	460	180	3 183	5 100	630	900
24156-2CS5/VT143	280	460	180	3 190	5 100		310
24156-2CS5K30/VT143	280	460	180	3 190	5 100		310
22260 CC/W33	300	540	140	3 239	4 250	1 000	1 400
22260 CCK/W33	300	540	140	3 239	4 250	1 000	1 400
23060 CAC/W33	300	460	118	2 154	3 350	1 200	1 500
23060 CACK/W33	300	460	118	2 154	3 350	1 200	1 500
23060 CC/W33	300	460	118	2 219	3 450	1 200	1 500
23060 CCK/W33	300	460	118	2 219	3 450	1 200	1 500
23060-2CS5/VT143	300	460	118	2 221	3 450		320
23060-2CS5K/VT143	300	460	118	2 221	3 450		320
23160 CAC/W33	300	500	160	3 135	4 650	950	1 200
23160 CACK/W33	300	500	160	3 135	4 650	950	1 200
23160 CC/W33	300	500	160	3 368	5 100	950	1 200
23160 CCK/W33	300	500	160	3 368	5 100	950	1 200

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23160-2CS5/VT143	300	500	160	3 373	5 100		280
23160-2CS5K/VT143	300	500	160	3 373	5 100		280
23260 CAC/W33	300	540	192	4 052	5 850	750	1 000
23260 CACK/W33	300	540	192	4 052	5 850	750	1 000
23260 CC/W33	300	540	192	4 052	5 850	750	1 000
23260 CCK/W33	300	540	192	4 052	5 850	750	1 000
23960 CC/W33	300	420	90	1 413	2 500	1 400	1 600
23960 CCK/W33	300	420	90	1 413	2 500	1 400	1 600
24060 CAC/W33	300	460	160	2 735	4 500	850	1 200
24060 CACK30/W33	300	460	160	2 735	4 500	850	1 200
24060 CC/W33	300	460	160	2 821	4 750	850	1 200
24060 CCK30/W33	300	460	160	2 821	4 750	850	1 200
24060-2CS5/VT143	300	460	160	2 827	4 750		290
24160 CC/W33	300	500	200	3 876	6 300	560	800
24160 CCK30/W33	300	500	200	3 876	6 300	560	800
24160-2CS5/VT143	300	500	200	3 881	6 300		290
24160-2CS5K30/VT143	300	500	200	3 881	6 300		290
22264 CC/W33	320	580	150	3 708	4 900	950	1 300
22264 CCK/W33	320	580	150	3 708	4 900	950	1 300
23064 CC/W33	320	480	121	2 348	3 800	1 100	1 400
23064 CCK/W33	320	480	121	2 348	3 800	1 100	1 400
23164 CAC/W33	320	540	176	3 653	5 500	850	1 100
23164 CACK/W33	320	540	176	3 653	5 500	850	1 100
23164 CC/W33	320	540	176	3 923	6 000	850	1 100
23164 CCK/W33	320	540	176	3 923	6 000	850	1 100
23164-2CS5/VT143	320	540	176	3 929	6 100		260
23164-2CS5K/VT143	320	540	176	3 929	6 100		260
23264 CAC/W33	320	580	208	4 607	6 700	700	950
23264 CACK/W33	320	580	208	4 607	6 700	700	950
23264 CC/W33	320	580	208	4 607	6 700	700	950

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23264 CCK/W33	320	580	208	4 607	6 700	700	950
23964 CC/W33	320	440	90	1 480	2 700	1 400	1 500
23964 CCK/W33	320	440	90	1 480	2 700	1 400	1 500
24064 CC/W33	320	480	160	2 969	5 100	800	1 200
24064 CCK30/W33	320	480	160	2 969	5 100	800	1 200
24164 CC/W33	320	540	218	4 395	7 100	500	700
24164 CCK30/W33	320	540	218	4 395	7 100	500	700
24164-2CS5K30/C3HGEA8	320	540	218	4 396	7 100		70
23068 CAC/W33	340	520	133	2 812	4 550	1 000	1 300
23068 CACK/W33	340	520	133	2 812	4 550	1 000	1 300
23068 CC/W33	340	520	133	2 812	4 550	1 000	1 300
23068 CCK/W33	340	520	133	2 812	4 550	1 000	1 300
23168 CAC/W33	340	580	190	4 285	6 550	800	1 000
23168 CACK/W33	340	580	190	4 285	6 550	800	1 000
23168 CC/W33	340	580	190	4 445	6 800	800	1 000
23168 CCK/W33	340	580	190	4 445	6 800	800	1 000
23168-2CS5/VT143	340	580	190	4 452	6 800		250
23168-2CS5K/VT143	340	580	190	4 453	6 800		250
23268 CA/W33	340	620	224	5 362	7 800	560	800
23268 CAK/W33	340	620	224	5 362	7 800	560	800
23968 CC/W33	340	460	90	1 490	2 800	1 300	1 400
23968 CCK/W33	340	460	90	1 490	2 800	1 300	1 400
24068 CC/W33	340	520	180	3 621	6 200	750	1 100
24068 CCK30/W33	340	520	180	3 621	6 200	750	1 100
24168 ECAC/W33	340	580	243	5 487	8 650	430	630
24168 ECACK30/W33	340	580	243	5 487	8 650	430	630
24168 ECCJ/W33	340	580	243	5 487	8 650	430	630
24168 ECCK30J/W33	340	580	243	5 487	8 650	430	630
22272 CA/W33	360	650	170	4 430	6 200	630	850
22272 CAK/W33	360	650	170	4 430	6 200	630	850

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23072 CAC/W33	360	540	134	2 773	4 650	950	1 200
23072 CACK/W33	360	540	134	2 773	4 650	950	1 200
23072 CC/W33	360	540	134	2 850	4 800	950	1 200
23072 CCK/W33	360	540	134	2 850	4 800	950	1 200
23172 CC/W33	360	600	192	4 515	6 950	750	1 000
23172 CCK/W33	360	600	192	4 515	6 950	750	1 000
23172-2CS5/VT143	360	600	192	4 521	6 950		230
23172-2CS5K/VT143	360	600	192	4 521	6 950		230
23272 CA/W33	360	650	232	5 663	8 300	530	750
23272 CAK/W33	360	650	232	5 663	8 300	530	750
23272-2CS5/VT143	360	650	232	5 668	8 300		220
23272-2CS5K/VT143	360	650	232	5 668	8 300		220
23972 CC/W33	360	480	90	1 456	2 750	1 200	1 300
23972 CCK/W33	360	480	90	1 456	2 750	1 200	1 300
24072 CC/W33	360	540	180	3 705	6 550	700	1 000
24072 CCK30/W33	360	540	180	3 705	6 550	700	1 000
24172 ECCJ/W33	360	600	243	5 737	9 300	400	600
24172 ECCK30J/W33	360	600	243	5 737	9 300	400	600
24172-2CS5/VT143	360	600	243	5 749	9 300		240
23076 CAC/W33	380	560	135	2 903	4 900	900	1 200
23076 CACK/W33	380	560	135	2 903	4 900	900	1 200
23076 CC/W33	380	560	135	2 984	5 000	900	1 200
23076 CCK/W33	380	560	135	2 984	5 000	900	1 200
23076-2CS5/VT143	380	560	135	2 987	5 000		260
23076-2CS5K/VT143	380	560	135	2 987	5 000		260
23176 CA/W33	380	620	194	4 561	7 100	560	1 000
23176 CAK/W33	380	620	194	4 561	7 100	560	1 000
23176-2CS5/VT143	380	620	194	4 561	7 100		220
23176-2CS5K/VT143	380	620	194	4 561	7 100		220
23276 CA/W33	380	680	240	6 126	9 150	500	750

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23276 CAK/W33	380	680	240	6 126	9 150	500	750
23976 CC/W33	380	520	106	2 011	3 800	1 100	1 200
23976 CCK/W33	380	520	106	2 011	3 800	1 100	1 200
24076 CC/W33	380	560	180	3 786	6 800	670	950
24076 CCK30/W33	380	560	180	3 786	6 800	670	950
24176 ECA/W33	380	620	243	5 936	9 800	360	530
24176 ECAK30/W33	380	620	243	5 936	9 800	360	530
24176-2CS5K30/C3HGEA8	380	620	243	5 950	9 800		60
22380 CA/W33	400	820	243	7 832	10 400	430	750
22380 CAK/W33	400	820	243	7 832	10 400	430	750
23080 CAC/W33	400	600	148	3 413	5 700	850	1 100
23080 CACK/W33	400	600	148	3 413	5 700	850	1 100
23080 CC/W33	400	600	148	3 511	5 850	850	1 100
23080 CCK/W33	400	600	148	3 511	5 850	850	1 100
23080-2CS5/VT143	400	600	148	3 515	5 850		240
23080-2CS5K/VT143	400	600	148	3 515	5 850		240
23180 CA/W33	400	650	200	4 864	7 650	530	950
23180 CAK/W33	400	650	200	4 864	7 650	530	950
23180-2CS5/VT143	400	650	200	4 864	7 650		210
23180-2CS5K/VT143	400	650	200	4 864	7 650		210
23280 CA/W33	400	720	256	6 881	10 400	480	670
23280 CAK/W33	400	720	256	6 881	10 400	480	670
23980 CC/W33	400	540	106	2 038	3 900	1 100	1 200
23980 CCK/W33	400	540	106	2 038	3 900	1 100	1 200
24080 ECCJ/W33	400	600	200	4 507	8 000	630	900
24080 ECCK30J/W33	400	600	200	4 507	8 000	630	900
24180 ECA/W33	400	650	250	6 331	10 600	340	500
24180 ECAK30/W33	400	650	250	6 331	10 600	340	500
24180-2CS5K30/C3HGEA8	400	650	250	6 343	10 600		55
23084 CA/W33	420	620	150	3 541	6 000	600	1 100

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
23084 CAK/W33	420	620	150	3 541	6 000	600	1 100
23184 CJ/W33	420	700	224	5 919	9 300	480	900
23184 CKJ/W33	420	700	224	5 919	9 300	480	900
23184-2CS5/VT143	420	700	224	5 919	9 300		190
23184-2CS5K/VT143	420	700	224	5 919	9 300		190
23284 CA/W33	420	760	272	7 677	11 600	450	630
23284 CAK/W33	420	760	272	7 677	11 600	450	630
23284-2CS5/VT143	420	760	272	7 683	11 600		190
23284-2CS5K/VT143	420	760	272	7 683	11 600		190
23984 CC/W33	420	560	106	2 083	4 150	1 000	1 100
23984 CCK/W33	420	560	106	2 083	4 150	1 000	1 100
24084 ECA/W33	420	620	200	4 610	8 300	530	900
24084 ECAK30/W33	420	620	200	4 610	8 300	530	900
24184 ECA/W33	420	700	280	7 577	12 500	320	480
24184 ECAK30/W33	420	700	280	7 577	12 500	320	480
24184-2CS5K30/C3HGEA8	420	700	280	7 591	12 500		55
23088 CA/W33	440	650	157	3 831	6 550	560	1 000
23088 CAK/W33	440	650	157	3 831	6 550	560	1 000
23088-2CS5/VT143	440	650	157	3 834	6 550		190
23188 CA/W33	440	720	226	6 215	10 000	450	850
23188 CAK/W33	440	720	226	6 215	10 000	450	850
23188-2CS5/VT143	440	720	226	6 220	10 000		180
23188-2CS5K/VT143	440	720	226	6 220	10 000		180
23288 CA/W33	440	790	280	8 150	12 500	430	600
23288 CAK/W33	440	790	280	8 150	12 500	430	600
23988 CC/W33	440	600	118	2 506	4 900	950	1 000
23988 CCK/W33	440	600	118	2 506	4 900	950	1 000
24088 ECA/W33	440	650	212	4 987	9 150	500	850
24088 ECAK30/W33	440	650	212	4 987	9 150	500	850
24188 ECA/W33	440	720	280	7 777	13 200	300	450

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
24188 ECAK30/W33	440	720	280	7 777	13 200	300	450
24188-2CS5K30/C3HGEA8	440	720	280	7 793	13 200		50
23092 CA/W33	460	680	163	4 065	6 950	560	950
23092 CAK/W33	460	680	163	4 065	6 950	560	950
23192 CA/W33	460	760	240	6 760	10 800	430	800
23192 CAK/W33	460	760	240	6 760	10 800	430	800
23192-2CS5/VT143	460	760	240	6 765	10 800		180
23192-2CS5K/VT143	460	760	240	6 765	10 800		180
23292 CA/W33	460	830	296	8 958	13 700	400	560
23292 CAK/W33	460	830	296	8 958	13 700	400	560
23992 CA/W33	460	620	118	2 558	5 000	600	1 000
23992 CAK/W33	460	620	118	2 558	5 000	600	1 000
24092 ECA/W33	460	680	218	5 401	10 000	480	800
24092 ECAK30/W33	460	680	218	5 401	10 000	480	800
24192 ECA/W33	460	760	300	8 608	14 600	280	430
24192 ECAK30/W33	460	760	300	8 608	14 600	280	430
24192-2CS5K30/C3HGEA8	460	760	300	8 630	14 600		50
24892 CAK30MA/W20	460	580	118	2 082	4 900	630	1 100
24892 CAMA/W20	460	580	118	2 082	4 900	630	1 100
23096 CA/W33	480	700	165	3 996	6 800	530	950
23096 CAK/W33	480	700	165	3 996	6 800	530	950
23196 CA/W33	480	790	248	7 362	12 000	400	750
23196 CAK/W33	480	790	248	7 362	12 000	400	750
23196-2CS5/VT143	480	790	248	7 367	12 000		170
23196-2CS5K/VT143	480	790	248	7 367	12 000		170
23296 CA/W33	480	870	310	9 805	15 000	380	530
23296 CAK/W33	480	870	310	9 805	15 000	380	530
23996 CA/W33	480	650	128	2 990	5 700	560	1 000
23996 CAK/W33	480	650	128	2 990	5 700	560	1 000
24096 ECA/W33	480	700	218	5 524	10 400	450	750

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
24096 ECAK30/W33	480	700	218	5 524	10 400	450	750
24196 ECA/W33	480	790	308	9 198	15 600	260	400
24196 ECAK30/W33	480	790	308	9 198	15 600	260	400
24196-2CS5K30/C3HGEA8	480	790	308	9 215	15 600		45
230/500 CA/W33	500	720	167	4 358	7 800	500	900
230/500 CAK/W33	500	720	167	4 358	7 800	500	900
231/500 CA/W33	500	830	264	8 037	12 900	380	700
231/500 CAK/W33	500	830	264	8 037	12 900	380	700
232/500 CA/W33	500	920	336	11 183	17 300	360	500
232/500 CAK/W33	500	920	336	11 183	17 300	360	500
239/500 CA/W33	500	670	128	2 967	6 000	530	950
239/500 CAK/W33	500	670	128	2 967	6 000	530	950
240/500 ECA/W33	500	720	218	5 777	11 000	430	700
240/500 ECAK30/W33	500	720	218	5 777	11 000	430	700
241/500 ECA/W33	500	830	325	10 123	17 000	260	380
241/500 ECAK30/W33	500	830	325	10 123	17 000	260	380
241/500-2CS5K30/C3HGEA8	500	830	325	10 145	17 000		45
241/500-2CS5K30/C3VT143	500	830	325	10 145	17 000		170
230/530 CA/W33	530	780	185	5 267	9 300	450	800
230/530 CAK/W33	530	780	185	5 267	9 300	450	800
231/530 CA/W33	530	870	272	8 526	14 000	360	670
231/530 CAK/W33	530	870	272	8 526	14 000	360	670
232/530 CA/W33	530	980	355	13 268	20 400	320	480
232/530 CAK/W33	530	980	355	13 268	20 400	320	480
239/530 CA/W33	530	710	136	3 308	6 700	500	900
239/530 CAK/W33	530	710	136	3 308	6 700	500	900
240/530 BC	530	780	250	7 149	13 200	20	50
240/530 ECA/W33	530	780	250	6 973	13 200	400	670
240/530 ECAK30/W33	530	780	250	6 973	13 200	400	670
241/530 ECA/W33	530	870	335	10 909	19 000	240	360

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
241/530 ECAK30/W33	530	870	335	10 909	19 000	240	360
241/530-2CS5K30/C3HGEA8	530	870	335	10 938	19 000		45
230/560 CA/W33	560	820	195	5 779	10 200	430	750
230/560 CAK/W33	560	820	195	5 779	10 200	430	750
231/560 CA/W33	560	920	280	9 596	16 000	340	630
231/560 CAK/W33	560	920	280	9 596	16 000	340	630
232/560 CA/W33	560	1 030	365	13 940	22 000	280	430
232/560 CAK/W33	560	1 030	365	13 940	22 000	280	430
239/560 CA/W33	560	750	140	3 571	7 200	450	850
239/560 CAK/W33	560	750	140	3 571	7 200	450	850
240/560 BC	560	820	258	7 530	14 000	20	50
240/560 ECA/W33	560	820	258	7 621	14 600	380	630
240/560 ECAK30/W33	560	820	258	7 621	14 600	380	630
241/560 ECJ/W33	560	920	355	12 366	21 600	220	320
241/560 ECK30J/W33	560	920	355	12 366	21 600	220	320
241/560-2CS5K30/C3HGEA8	560	920	355	12 387	21 600		40
230/600 CA/W33	600	870	200	6 252	11 400	400	700
230/600 CAK/W33	600	870	200	6 252	11 400	400	700
231/600 CA/W33	600	980	300	10 738	18 000	320	560
231/600 CAK/W33	600	980	300	10 738	18 000	320	560
232/600 CA/W33	600	1 090	388	15 652	25 500	260	400
239/600 CA/W33	600	800	150	4 022	8 300	430	750
239/600 CAK/W33	600	800	150	4 022	8 300	430	750
240/600 BC	600	870	272	8 502	16 300	20	45
240/600 ECA/W33	600	870	272	8 580	17 000	340	560
240/600 ECAK30/W33	600	870	272	8 580	17 000	340	560
241/600 ECA/W33	600	980	375	13 522	23 600	200	300
241/600 ECAK30/W33	600	980	375	13 522	23 600	200	300
241/600-2CS5K30/C3HGEA8	600	980	375	13 555	24 000		40
230/630 CA/W33	630	920	212	6 898	12 500	380	670

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
230/630 CAK/W33	630	920	212	6 898	12 500	380	670
231/630 CA/W33	630	1 030	315	12 600	20 800	260	530
231/630 CAK/W33	630	1 030	315	12 600	20 800	260	530
238/630 CAMA/W20	630	780	112	2 545	6 100	430	750
239/630 CA/W33	630	850	165	4 744	9 800	400	700
239/630 CAK/W33	630	850	165	4 744	9 800	400	700
240/630 BC	630	920	290	9 307	17 600	20	45
240/630 ECJ/W33	630	920	290	9 150	18 000	320	530
240/630 ECK30J/W33	630	920	290	9 150	18 000	320	530
241/630 ECA/W33	630	1 030	400	15 001	27 000	190	280
241/630 ECAK30/W33	630	1 030	400	15 001	27 000	190	280
241/630-2CS5K30/C3HGEA8	630	1 030	400	15 039	27 000		35
230/670 CA/W33	670	980	230	7 919	14 600	340	600
230/670 CAK/W33	670	980	230	7 919	14 600	340	600
231/670 CA/W33	670	1 090	336	13 101	22 400	240	500
231/670 CAK/W33	670	1 090	336	13 101	22 400	240	500
232/670 CA/C3W33	670	1 220	438	18 650	30 500	220	360
232/670 CAK/C3W33	670	1 220	438	18 650	30 500	220	360
232/670 CAK/W33	670	1 220	438	18 683	30 500	220	360
232/670-2CS5K/VT143	670	1 220	438	18 683	30 500		120
238/670 CAMA/W20	670	820	112	2 643	6 400	400	700
239/670 CA/W33	670	900	170	5 146	10 800	360	670
239/670 CAK/W33	670	900	170	5 146	10 800	360	670
240/670 BC	670	980	308	10 411	20 000	20	45
240/670 ECA/W33	670	980	308	10 435	20 400	300	500
240/670 ECAK30/W33	670	980	308	10 435	20 400	300	500
241/670 ECA/W33	670	1 090	412	16 422	29 000	180	260
241/670 ECAK30/W33	670	1 090	412	16 422	29 000	180	260
241/670-2CS5K30/C3HGEA8	670	1 090	412	16 422	29 000		35
248/670 CAMA/W20	670	820	150	3 598	9 500	400	700

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
230/710 CA/W33	710	1 030	236	8 669	16 300	300	560
230/710 CAK/W33	710	1 030	236	8 669	16 300	300	560
231/710 CA/W33	710	1 150	345	14 732	26 000	240	450
231/710 CAK/W33	710	1 150	345	14 732	26 000	240	450
232/710 CAK/C3W33	710	1 280	450	21 208	34 500	200	320
238/710 CAMA/W20	710	870	118	3 013	7 500	360	670
239/710 CA/W33	710	950	180	5 702	12 000	340	600
239/710 CAK/W33	710	950	180	5 702	12 000	340	600
240/710 BC	710	1 030	315	11 166	22 000	20	40
240/710 ECA/W33	710	1 030	315	11 164	22 800	260	450
240/710 ECAK30/W33	710	1 030	315	11 164	22 800	260	450
241/710 ECA/W33	710	1 150	438	17 969	32 500	160	240
241/710 ECAK30/W33	710	1 150	438	17 969	32 500	160	240
241/710-2CS5K30/C3HGEA8	710	1 150	438	17 969	32 500		30
249/710 CA/W33	710	950	243	6 860	15 600	300	500
249/710 CAK30/W33	710	950	243	6 860	15 600	300	500
230/750 CA/W33	750	1 090	250	10 061	18 600	280	530
230/750 CAK/W33	750	1 090	250	10 061	18 600	280	530
231/750 CA/W33	750	1 220	365	16 518	29 000	220	430
231/750 CAK/W33	750	1 220	365	16 518	29 000	220	430
232/750 CAK/W33	750	1 360	475	22 515	36 500	190	300
238/750 CAMA/W20	750	920	128	3 405	8 500	340	600
239/750 CA/W33	750	1 000	185	6 138	13 200	300	560
239/750 CAK/W33	750	1 000	185	6 138	13 200	300	560
240/750 BC	750	1 090	335	12 309	24 500	20	40
240/750 ECA/W33	750	1 090	335	12 235	25 000	240	430
240/750 ECAK30/W33	750	1 090	335	12 235	25 000	240	430
241/750 ECA/W33	750	1 220	475	20 485	37 500	150	220
241/750 ECAK30/W33	750	1 220	475	20 485	37 500	150	220
241/750-2CS5K30/C3HGEA8	750	1 220	475	20 485	37 500		30

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
249/750 CA/W33	750	1 000	250	7 699	18 000	260	480
249/750 CAK30/W33	750	1 000	250	7 699	18 000	260	480
230/800 CA/W33	800	1 150	258	10 335	20 000	260	480
230/800 CAK/W33	800	1 150	258	10 335	20 000	260	480
231/800 CAK/W33	800	1 280	375	18 033	31 500	200	400
232/800 CAF/W33	800	1 420	488	25 001	43 000	180	280
232/800 CAKF/W33	800	1 420	488	25 001	43 000	180	280
239/800 CA/W33	800	1 060	195	6 595	14 300	280	530
239/800 CAK/W33	800	1 060	195	6 595	14 300	280	530
240/800 BC	800	1 150	345	13 447	27 500	20	40
240/800 ECA/W33	800	1 150	345	13 431	28 500	220	400
241/800 ECA/W33	800	1 280	475	21 636	40 500	140	200
241/800-2CS5K30/C3HGEA8	800	1 280	475	21 636	40 500		30
248/800 CAK30MA/W20	800	980	180	4 780	12 900	320	560
249/800 CA/W33	800	1 060	258	8 136	19 300	240	430
230/850 CA/W33	850	1 220	272	11 291	21 600	240	450
230/850 CAK/W33	850	1 220	272	11 291	21 600	240	450
232/850 CAF/W33	850	1 500	515	27 675	48 000	160	260
238/850 CAKMA/W20	850	1 030	136	3 882	10 000	260	530
238/850 CAMA/W20	850	1 030	136	3 882	10 000	260	530
239/850 CA/W33	850	1 120	200	7 072	15 600	260	480
239/850 CAK/W33	850	1 120	200	7 072	15 600	260	480
240/850 BC	850	1 220	365	15 078	31 000	20	40
240/850 ECA/W33	850	1 220	365	15 183	31 500	200	360
240/850 ECAK30/W33	850	1 220	365	15 183	31 500	200	360
241/850 ECA/W33	850	1 360	500	23 870	45 000	130	190
241/850 ECAK30/W33	850	1 360	500	23 870	45 000	130	190
241/850-2CS5K30/C3HGEA8	850	1 360	500	23 870	45 000		30
249/850 CA/W33	850	1 120	272	9 390	22 800	220	400
249/850 CAK30/W33	850	1 120	272	9 390	22 800	220	400

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
230/900 CA/W33	900	1 280	280	12 002	23 200	220	400
230/900 CAK/W33	900	1 280	280	12 002	23 200	220	400
239/900 CA/W33	900	1 180	206	7 652	17 000	240	450
239/900 CAK/W33	900	1 180	206	7 652	17 000	240	450
240/900 BC	900	1 280	375	16 215	34 000	20	40
240/900 ECA/W33	900	1 280	375	16 185	34 500	190	340
240/900 ECAK30/W33	900	1 280	375	16 185	34 500	190	340
241/900 ECA/W33	900	1 420	515	25 360	49 000	120	180
241/900 ECAK30/W33	900	1 420	515	25 360	49 000	120	180
241/900-2CS5K30/C3HGEA8	900	1 420	515	25 360	49 000		25
248/900 CAMA/W20	900	1 090	190	5 428	15 300	240	480
230/950 CA/W33	950	1 360	300	14 363	28 500	200	380
230/950 CAK/W33	950	1 360	300	14 363	28 500	200	380
239/950 CA/W33	950	1 250	224	8 606	19 600	220	430
239/950 CAK/W33	950	1 250	224	8 606	19 600	220	430
240/950 BC	950	1 360	412	18 228	38 000	20	35
241/950 ECA/W33	950	1 500	545	27 943	55 000	110	160
241/950 ECAK30/C3LW33	950	1 500	545	27 943	55 000	110	160
241/950-2CS5K30/C3HGEA8	950	1 500	545	27 943	55 000		25
249/950 CA/W33	950	1 250	300	10 701	26 000	180	340
249/950 CAK30/W33	950	1 250	300	10 701	26 000	180	340
231/1000 CAF/W33	1 000	1 580	462	25 650	48 000	140	280
231/1000 CAKF/W33	1 000	1 580	462	25 650	48 000	140	280
238/1000 CAKMA/W20	1 000	1 220	165	5 405	14 300	220	400
240/1000 CAF/W33	1 000	1 420	412	18 592	40 500	160	280
240/1000 CAK30F/W33	1 000	1 420	412	18 592	40 500	160	280
241/1000 ECA/W33	1 000	1 580	580	31 236	62 000	100	150
241/1000 ECAK30/C3W33	1 000	1 580	580	31 236	62 000	100	150
241/1000-2CS5K30/C3HGEA8	1 000	1 580	580	31 236	62 000		25
249/1000 CA/W33	1 000	1 320	315	11 939	29 000	170	320

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
239/1060 CAF/W33	1 060	1 400	250	11 333	26 000	180	360
239/1060 CAKF/W33	1 060	1 400	250	11 333	26 000	180	360
240/1060 CAF/W33	1 060	1 500	438	20 724	45 500	150	260
240/1060 CAK30F/W33	1 060	1 500	438	20 724	45 500	150	260
241/1060 ECAK30/C3HW33	1 060	1 660	600	31 471	63 000	90	140
241/1060-2CS6K30/C3HGEA8	1 060	1 660	600	31 471	63 000		20
249/1060 CAF/W33	1 060	1 400	335	13 354	32 500	160	280
249/1060 CAK30F/W33	1 060	1 400	335	13 354	32 500	160	280
BS2-8138-2CS6K30/C4LGEA8	1 100	1 730	660	35 133	71 000		20
240/1120 BC/CNLVQ7142	1 120	1 580	462	22 936	49 000	20	35
240/1120 CAF/W33	1 120	1 580	462	22 364	50 000	130	240
241/1120 ECAK30/C3HW33	1 120	1 750	630	34 016	68 000	85	130
241/1120-2CS6K30/C3HGEA8	1 120	1 750	630	34 016	68 000		20
249/1120 CAF/W33	1 120	1 460	335	13 718	34 500	140	260
238/1180 CAKFA/W20	1 180	1 420	180	6 778	18 600	170	320
239/1180 CAF/W33	1 180	1 540	272	13 076	31 000	150	300
239/1180 CAKF/W33	1 180	1 540	272	13 076	31 000	150	300
241/1180 ECAK30/C3HW33	1 180	1 850	670	38 266	78 000	75	110
241/1180-2CS6K30/C3HGEA8	1 180	1 850	670	38 266	78 000		20
249/1180 CAF/W33	1 180	1 540	355	15 751	40 500	130	240
230/1250 CAF/W33	1 250	1 750	375	21 256	45 000	130	240
230/1250 CAKF/W33	1 250	1 750	375	21 256	45 000	130	240
241/1250 ECAK30/C3HW33	1 250	1 950	710	40 892	88 000	70	100
241/1250-2CS6K30/C3HGEA8	1 250	1 950	710	40 892	88 000		20
249/1250 CAF/W33X	1 250	1 630	375	18 114	46 500	120	220
249/1320 CAF/W33	1 320	1 720	400	18 714	49 000	110	200
249/1320 CAK30F/W33	1 320	1 720	400	18 714	49 000	110	200
248/1500 CAK30FA/W20	1 500	1 820	315	14 684	45 000	110	220
248/1800 CAK30FA/W20	1 800	2 180	375	20 274	63 000	75	140

SPHERICAL ROLLER BEARINGS

Product Information

Contact us

Inquiries about technology　product specifications

Inquiries about purchase

Inquiries about technical trouble repair

Inquiries about others

CONTACT US

Spherical Roller Bearings

SPHERICAL ROLLER BEARINGS

Product Information

Contact us
