TAPERED ROLLER BEARINGS

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed

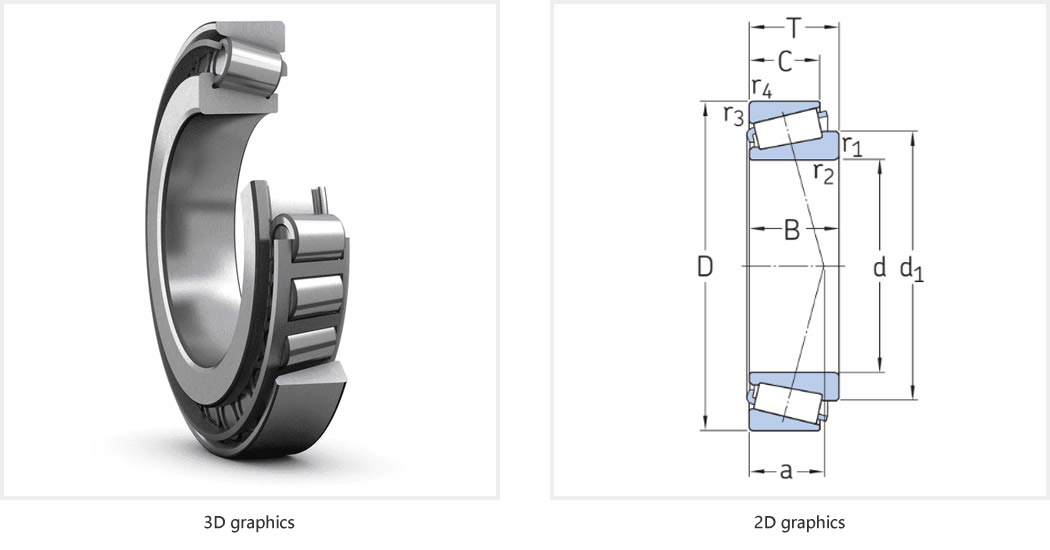

	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
A 4059/A 4138	14.989	34.988	10.998	16.5	13.2	17 000	22 000
30202	15	35	11.75	18.5	14.6	17 000	20 000
30302	15	42	14.25	27.7	20	15 000	18 000
11590/11520	15.875	42.862	14.288	21.5	17.6	13 000	17 000
30203	17	40	13.25	23.4	18.6	15 000	18 000
30303	17	47	15.25	34.2	25	13 000	16 000
32303	17	47	20.25	42.8	33.5	12 000	16 000
LM 11949/910	19.05	45.237	15.494	33.8	27.5	13 000	16 000
30204	20	47	15.25	34.1	28	12 000	15 000
30304	20	52	16.25	41.9	32.5	12 000	14 000
32004 X	20	42	15	29.7	27	13 000	16 000
32304	20	52	22.25	54.3	45.5	11 000	14 000
M 12649/610	21.43	50.005	17.526	45.4	38	12 000	15 000
320/22 X	22	44	15	30.9	29	13 000	15 000
30205	25	52	16.25	38.1	33.5	11 000	13 000
30305	25	62	18.25	55.3	43	9 500	12 000
31305	25	62	18.25	46.6	40	8 500	11 000
32005 X	25	47	15	33.2	32.5	12 000	14 000
32205 B	25	52	19.25	44.5	44	10 000	13 000
32305	25	62	25.25	74.1	63	9 000	12 000
33205	25	52	22	57.9	56	10 000	13 000
15578/15520	25.4	57.15	17.462	49.1	45.5	10 000	12 000
M 84548/510	25.4	57.15	19.431	48.8	45	10 000	12 000
302/28	28	58	17.25	46.6	41.5	10 000	12 000
320/28 X	28	52	16	39	38	10 000	13 000
322/28 B	28	58	20.25	51.9	50	9 500	12 000
1988/1922	28.575	57.15	19.845	58.2	55	10 000	12 000
30206	30	62	17.25	50	44	9 000	11 000
30306	30	72	20.75	69.2	56	8 000	10 000
31306	30	72	20.75	58.3	50	7 500	9 500

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
32006 X	30	55	17	43.9	44	10 000	12 000
32206	30	62	21.25	61.8	57	9 000	11 000
32306	30	72	28.75	95	85	7 500	10 000
33206	30	62	25	79.7	76.5	8 500	11 000
M 86649/610	30.162	64.292	21.433	60.4	61	8 500	11 000
M 88043/010	30.162	68.262	22.225	67.1	69.5	8 000	10 000
15123/15245	31.75	62	18.161	59.5	57	9 000	11 000
HM 88542/510	31.75	73.025	29.37	86.5	95	7 500	9 000
320/32 X	32	58	17	45.1	46.5	9 000	11 000
14131/14276	33.338	69.012	19.845	65.8	67	8 000	10 000
HM 88649/610	34.925	72.233	25.4	83	90	7 500	9 000
HM 89446/410	34.925	76.2	29.37	95.2	106	7 000	8 500
LM 48548 A/510	34.925	65.088	18.034	58	57	8 500	10 000
L 68149/111	34.987	59.975	15.875	40.6	44	9 000	11 000
30207	35	72	18.25	63.2	56	8 000	9 500
30307	35	80	22.75	88.9	73.5	7 500	9 000
31307	35	80	22.75	75.4	67	6 300	8 500
32007 X	35	62	18	52.3	54	8 500	10 000
32207	35	72	24.25	81.2	78	8 000	9 500
32307	35	80	32.75	117	106	6 700	9 000
32307 B	35	80	32.75	115	114	6 300	8 500
33207	35	72	28	104	106	7 000	9 500
HM 89449/410	36.512	76.2	29.37	95.2	106	7 000	8 500
JL 69349 A/310	38	63	17	45.7	52	8 500	10 000
JL 69349 X/310	38	63	17	45.7	52	8 500	10 000
JL 69349/310	38	63	17	45.7	52	8 500	10 000
418/414	38.1	88.5	26.988	123	114	6 700	8 500
HM 801346 X/310	38.1	82.55	29.37	106	118	6 700	8 000
HM 801346/310	38.1	82.55	29.37	106	118	6 700	8 000
LM 29749/711	38.1	65.088	19.812	53	57	8 000	10 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
30208	40	80	19.75	75.8	68	7 000	8 500
30208 R	40	80	19.75	75.8	68	7 000	8 500
30308	40	90	25.25	106	95	6 300	8 000
31308	40	90	25.25	91.1	81.5	5 600	7 500
32008 X	40	68	19	64.7	71	7 500	9 500
32208	40	80	24.75	91.6	86.5	7 000	8 500
32308	40	90	35.25	143	140	6 000	8 000
33108	40	75	26	97.5	104	7 000	9 000
33208	40	80	32	128	132	6 300	8 500
T2EE 040	40	85	33	150	150	6 700	8 000
LM 300849/811	40.987	67.975	17.5	53.6	58.5	8 000	9 500
24780/24720	41.275	76.2	22.225	84.2	86.5	7 000	9 000
3585/3525	41.275	87.312	30.162	126	132	6 300	8 000
HM 803146/110	41.275	88.9	30.162	116	127	6 000	7 500
LM 501349/310	41.275	73.431	19.558	67.6	68	7 500	9 000
LM 501349/314	41.275	73.431	21.43	67.6	68	7 500	9 000
M 802048/011	41.275	82.55	26.543	91.2	91.5	6 700	8 000
25580/25520	44.45	82.931	23.812	99.1	106	6 700	8 000
25580/25522	44.45	83.058	23.876	99.1	106	6 700	8 000
25580/25523	44.45	82.931	26.988	99.1	106	6 700	8 000
3782/3720	44.45	93.264	30.163	134	146	5 600	7 000
53178/53377	44.45	95.25	30.958	108	96.5	5 300	7 000
535/532 A	44.45	111.125	38.1	183	190	5 300	6 300
HM 803149/110	44.45	88.9	30.162	116	127	6 000	7 500
30209	45	85	20.75	81.6	76.5	6 300	8 000
30309	45	100	27.25	132	120	5 600	7 000
31309	45	100	27.25	113	102	5 000	6 700
32009 X	45	75	20	71.7	80	7 000	8 500
32209	45	85	24.75	98.7	98	6 300	8 000
32309	45	100	38.25	173	170	5 300	7 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
33109	45	80	26	104	114	6 700	8 000
33209	45	85	32	132	143	6 000	7 500
358 X/354 X	45	85	20.638	87.3	81.5	6 700	8 000
T2ED 045	45	95	36	182	186	6 000	7 000
T7FC 045	45	95	29	110	112	5 300	7 000
LM 102949/910	45.242	73.431	19.558	66	75	7 000	8 500
LM 603049/011	45.242	77.788	19.842	66.8	69.5	7 000	8 500
LM 603049/012	45.242	77.788	21.43	66.8	69.5	7 000	8 500
25590/25520	45.618	82.931	23.812	99.1	106	6 700	8 000
25590/25523	45.618	82.931	26.988	99.1	106	6 700	8 000
LM 503349/310	45.987	74.975	18	62.1	71	7 000	8 500
18690/18620	46.038	79.375	17.462	61.1	62	7 000	8 500
359 S/354 X	46.038	85	20.638	87.3	81.5	6 700	8 000
369 S/362 A	47.625	88.9	20.638	94	91.5	6 300	7 500
30210	50	90	21.75	93.1	91.5	6 000	7 500
30310	50	110	29.25	154	140	5 300	6 300
31310	50	110	29.25	131	120	4 500	6 000
32010 X	50	80	20	75.1	88	6 300	8 000
32210	50	90	24.75	101	100	6 000	7 500
32310	50	110	42.25	211	212	4 800	6 300
32310 B	50	110	42.25	196	216	4 500	6 000
32910	50	72	15	41.3	53	7 000	8 500
33010	50	80	24	84.8	102	6 300	8 000
33110	50	85	26	106	122	6 000	7 500
33210	50	90	32	142	160	5 300	7 000
JLM 104945/910	50	82	21.501	88.9	100	6 300	8 000
JM 205149/110	50	90	28	130	140	6 000	7 500
JM 205149/110 A	50	90	28	130	140	6 000	7 500
T2ED 050	50	100	36	189	200	5 600	6 700
T7FC 050	50	105	32	134	137	4 800	6 300

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
18790/18720	50.8	85	17.462	62.1	65.5	6 300	8 000
368 A/362 A	50.8	88.9	20.638	94	91.5	6 300	7 500
368 A/362 X	50.8	90	25	94	91.5	6 300	7 500
537/532 X	50.8	107.95	36.512	183	190	5 300	6 300
539/532 X	53.975	107.95	36.512	183	190	5 300	6 300
72212/72487	53.975	123.825	36.512	174	160	4 300	5 600
LM 806649/610	53.975	88.9	19.05	71.5	78	6 000	7 000
30211	55	100	22.75	111	106	5 300	6 700
30311	55	120	31.5	176	163	4 800	5 600
32011 X	55	90	23	99.4	116	5 600	7 000
32211	55	100	26.75	130	129	5 300	6 700
32311	55	120	45.5	245	250	4 300	5 600
33011	55	90	27	111	137	5 600	7 000
33111	55	95	30	136	156	5 600	6 700
33211	55	100	35	170	190	4 800	6 300
T2ED 055	55	110	39	220	232	5 000	6 000
T7FC 055	55	115	34	155	163	4 300	5 600
387 A/382 A	57.15	96.838	21	99.9	102	5 600	6 700
39581/39520	57.15	112.712	30.162	175	204	4 500	5 600
462/453 X	57.15	104.775	30.162	150	160	5 300	6 300
6391/K-6320	59.987	135.755	53.975	353	400	4 000	5 000
30212	60	110	23.75	120	114	5 000	6 000
30312	60	130	33.5	208	196	4 300	5 300
31312	60	130	33.5	177	166	3 800	5 300
32012 X	60	95	23	101	122	5 300	6 700
32212	60	110	29.75	155	160	5 000	6 000
32312	60	130	48.5	282	290	4 000	5 300
32312 B	60	130	48.5	271	305	3 800	5 000
32912	60	85	17	53.2	75	6 000	7 000
33012	60	95	27	113	143	5 300	6 700

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
33112	60	100	30	144	170	5 300	6 300
33212	60	110	38	207	236	4 500	6 000
JLM 508748/710	60	95	24	103	132	5 300	6 700
T2EE 060	60	115	40	239	260	4 800	5 600
T7FC 060	60	125	37	190	204	4 000	5 300
395/394 A	63.5	110	22	108	118	4 800	6 000
39585/39520	63.5	112.712	30.162	175	204	4 500	5 600
3982/3920	63.5	112.712	30.163	152	183	4 800	5 600
30213	65	120	24.75	141	134	4 500	5 600
30313	65	140	36	240	228	4 000	4 800
31313	65	140	36	203	193	3 600	4 800
32013 X	65	100	23	103	127	5 000	6 000
32213	65	120	32.75	186	193	4 500	5 600
32313	65	140	51	323	335	3 600	4 800
32313 B	65	140	51	305	345	3 600	4 800
32913	65	90	17	54.7	80	5 600	6 700
33013	65	100	27	119	153	5 000	6 300
33113	65	110	34	175	208	4 800	5 600
33213	65	120	41	239	270	4 000	5 300
JLM 710949/910	65	105	24	122	137	5 000	6 000
JM 511946/910	65	110	28	152	183	4 800	5 600
T2DD 065	65	110	31	170	193	4 800	6 000
T7FC 065	65	130	37	194	216	3 800	5 000
6379/K-6320	65.088	135.755	53.975	353	400	4 000	5 000
395 A/394 A	66.675	110	22	108	118	4 800	6 000
395 S/394 A	66.675	110	22	108	118	4 800	6 000
39590/39520	66.675	112.712	30.162	175	204	4 500	5 600
3984/3920	66.675	112.712	30.162	152	183	4 800	5 600
6386/K-6320	66.675	135.755	53.975	353	400	4 000	5 000
482/472	69.85	120	29.795	163	186	4 500	5 300

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
566/563	69.85	127	36.512	217	255	4 300	5 000
30214	70	125	26.25	155	156	4 300	5 300
30314	70	150	38	271	260	3 800	4 500
31314	70	150	38	229	220	3 400	4 500
32014 X	70	110	25	125	153	4 500	5 600
32214	70	125	33.25	195	208	4 300	5 300
32314	70	150	54	363	380	3 400	4 500
32914	70	100	20	85.8	112	5 000	6 000
33014	70	110	31	159	196	4 800	5 600
33114	70	120	37	211	250	4 300	5 300
33214	70	125	41	247	285	3 800	5 000
T2ED 070	70	130	43	289	325	4 000	5 000
T7FC 070	70	140	39	219	240	3 400	4 500
33281/33462	71.438	117.475	30.162	152	190	4 500	5 300
H 715345/311	71.438	136.525	46.038	273	355	3 800	4 500
567/563	73.025	127	36.512	217	255	4 300	5 000
30215	75	130	27.25	171	176	4 000	5 000
30315	75	160	40	301	290	3 400	4 300
31315	75	160	40	255	245	3 200	4 300
32015 X	75	115	25	130	163	4 300	5 300
32215	75	130	33.25	197	212	4 000	5 000
32315	75	160	58	416	440	3 200	4 300
32315 B	75	160	58	410	475	3 200	4 000
32915	75	105	20	86.8	116	4 800	5 600
33015	75	115	31	167	228	4 300	5 300
33115	75	125	37	216	265	4 000	5 000
33215	75	130	41	255	300	3 600	4 800
JH 415647/610	75	145	51	380	450	3 600	4 500
JM 714249/210	75	120	31	170	216	4 300	5 300
42687/42620	76.2	127	30.162	171	204	4 000	5 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
47678/47620	76.2	133.35	33.338	202	260	3 800	4 800
575/572	76.2	139.992	36.512	227	280	3 800	4 500
34306/34478	77.788	121.442	24.608	115	134	4 300	5 300
42690/42620	77.788	127	30.163	171	204	4 000	5 000
30216	80	140	28.25	184	183	3 800	4 800
30316	80	170	42.5	333	320	3 200	4 000
31316	80	170	42.5	276	265	3 000	4 000
32016 X	80	125	29	168	216	4 000	5 000
32216	80	140	35.25	228	245	3 800	4 500
32316	80	170	61.5	404	500	3 000	4 000
32916	80	110	20	89.7	125	4 500	5 600
33016	80	125	36	207	285	4 000	5 000
33116	80	130	37	221	280	4 000	4 800
33216	80	140	46	308	375	3 400	4 500
JM 515649/610	80	130	35	216	275	4 000	4 800
580/572	82.55	139.992	36.512	227	280	3 800	4 500
663/653	82.55	146.05	41.275	270	320	3 600	4 300
749 A/742	82.55	150.089	44.45	351	405	3 600	4 300
30217	85	150	30.5	216	220	3 600	4 300
30317	85	180	44.5	372	365	3 000	3 800
31317	85	180	44.5	297	285	2 800	3 800
32017 X	85	130	29	171	224	3 800	4 800
32217	85	150	38.5	263	285	3 600	4 300
32317	85	180	63.5	435	530	2 800	3 800
32917	85	120	23	115	156	4 000	5 000
33017	85	130	36	223	310	3 800	4 800
33117	85	140	41	268	340	3 600	4 500
33217	85	150	49	353	430	3 200	4 300
T7FC 085	85	170	48	333	380	2 800	3 800
497/492 A	85.725	133.35	30.163	178	220	3 800	4 500

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
593/592 A	88.9	152.4	39.688	237	305	3 400	4 300
6580/6535	88.9	161.925	53.975	404	510	3 200	4 000
HM 218248/210	89.975	146.975	40	280	355	3 400	4 300
30218	90	160	32.5	240	245	3 400	4 000
30318	90	190	46.5	353	400	2 600	3 600
31318	90	190	46.5	283	315	2 400	3 400
32018 X	90	140	32	208	270	3 600	4 300
32218	90	160	42.5	309	340	3 400	4 000
32318	90	190	67.5	487	610	2 600	3 600
32918	90	125	23	119	166	4 000	4 800
33018	90	140	39	266	355	3 600	4 500
33118	90	150	45	310	390	3 400	4 300
33218	90	160	55	415	520	3 000	4 000
6581 X/6535	90	161.925	53.975	404	510	3 200	4 000
JM 718149 A/110	90	145	35	246	305	3 600	4 300
JM 718149/110	90	145	35	246	305	3 600	4 300
598/592 A	92.075	152.4	39.688	237	305	3 400	4 300
30219	95	170	34.5	266	275	3 200	3 800
30319	95	200	49.5	353	390	2 600	3 400
31319	95	200	49.5	314	355	2 400	3 400
32019 X	95	145	32	206	270	3 400	4 300
32219	95	170	45.5	348	390	3 200	3 800
32319	95	200	71.5	535	670	2 400	3 400
32919	95	130	23	121	173	3 800	4 500
33019	95	145	39	272	375	3 400	4 300
33219	95	170	58	460	560	2 800	3 800
594 A/592 A	95.25	152.4	39.688	237	305	3 400	4 300
594/592 A	95.25	152.4	39.688	237	305	3 400	4 300
683/672	95.25	168.275	41.275	288	365	3 000	3 800
HM 220149/110	99.975	156.975	42	303	400	3 200	4 000

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
30220	100	180	37	304	320	3 000	3 600
30320	100	215	51.5	431	490	2 400	3 200
31320 X	100	215	56.5	399	465	2 200	3 000
32020 X	100	150	32	209	280	3 200	4 000
32220	100	180	49	390	440	3 000	3 600
32320	100	215	77.5	617	780	2 200	3 200
32920	100	140	25	147	204	3 400	4 300
33020	100	150	39	278	390	3 400	4 000
33220	100	180	63	532	655	2 600	3 600
T2EE 100	100	165	47	383	480	3 200	3 800
T4CB 100	100	145	24	154	190	3 400	4 300
687/672	101.6	168.275	41.275	288	365	3 000	3 800
HH 224335/310	101.6	212.725	66.675	619	830	2 200	3 000
30221	105	190	39	333	355	2 800	3 400
30321	105	225	53.5	462	530	2 200	3 000
32021 X	105	160	35	248	335	3 200	3 800
32221	105	190	53	443	510	2 800	3 400
32321	105	225	81.5	645	815	2 000	3 000
32921	105	145	25	149	212	3 400	4 000
33021	105	160	43	303	430	3 200	3 800
56425/56650	107.95	165.1	36.512	256	355	3 000	3 600
64432/64708	109.975	179.975	41.275	307	415	2 800	3 400
30222	110	200	41	327	405	2 400	3 200
30322	110	240	54.5	507	585	2 200	2 800
31322 X	110	240	63	491	585	1 900	2 800
32022 X	110	170	38	288	390	3 000	3 600
32222	110	200	56	491	560	3 000	3 600
32322	110	240	84.5	675	830	1 900	2 800
32922	110	150	25	154	224	3 200	4 000
33022	110	170	47	343	500	3 000	3 600

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
33122	110	180	56	455	630	2 800	3 400
64450/64700	114.3	177.8	41.275	307	415	2 800	3 400
68450/68712	114.3	180.975	34.925	227	280	2 800	3 400
938/932	114.3	212.725	66.675	626	765	2 600	3 200
30224	120	215	43.5	417	465	2 400	3 000
30324	120	260	59.5	601	710	2 000	2 600
31324 X	120	260	68	578	695	1 700	2 400
32024 X	120	180	38	299	415	2 800	3 400
32224	120	215	61.5	573	695	2 400	3 000
32324	120	260	90.5	855	1 120	1 800	2 600
32924	120	165	29	204	305	3 000	3 600
33024	120	180	48	356	540	2 800	3 400
T4CB 120	120	170	27	195	250	2 800	3 600
48290/48220	127	182.562	39.688	281	440	2 600	3 200
30226	130	230	43.75	451	490	2 200	2 800
30326	130	280	63.75	679	800	1 800	2 400
31326 X	130	280	72	647	780	1 600	2 400
32026 X	130	200	45	388	540	2 400	3 000
32226	130	230	67.75	590	830	2 000	2 800
32326	130	280	98.75	1 019	1 340	1 600	2 400
32926	130	180	32	245	365	2 600	3 200
33026	130	200	55	470	680	2 400	3 000
67391/67322	133.35	196.85	46.038	395	585	2 400	3 000
L 327249/210	133.35	177.008	25.4	166	280	2 600	3 200
HM 231132/110	139.7	236.538	57.15	629	850	2 200	2 600
30228	140	250	45.75	451	570	1 900	2 600
31328 X	140	300	77	693	900	1 500	2 200
32028 X	140	210	45	404	585	2 400	2 800
32228	140	250	71.75	691	1 000	1 900	2 600
32328	140	300	107.75	1 220	1 660	1 600	2 200

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
32928	140	190	32	252	390	2 600	3 000
T4CB 140	140	195	29	241	325	2 400	3 000
30230	150	270	49	455	560	1 800	2 400
30330	150	320	72	879	1 060	1 600	2 000
31330 X	150	320	82	832	1 020	1 400	2 000
32030 X	150	225	48	456	655	2 200	2 600
32230	150	270	77	782	1 140	1 700	2 400
32930	150	210	38	346	530	2 200	2 800
33030	150	225	59	487	865	2 000	2 600
T4DB 150	150	210	32	287	390	2 200	2 800
LM 330448/410	152.4	203.2	41.275	251	480	2 400	2 800
L 432348/310	158.75	205.583	23.812	168	280	2 200	2 800
L 432349/310	158.75	205.583	23.813	168	280	2 200	2 800
30232	160	290	52	566	735	1 600	2 200
30332	160	340	75	970	1 180	1 500	2 000
32032 X	160	240	51	532	780	2 000	2 400
32232	160	290	84	934	1 400	1 600	2 200
32932	160	220	38	349	540	2 200	2 600
T4DB 160	160	220	32	257	415	2 000	2 600
HH 437549/510	165.1	336.55	92.075	1 198	1 700	1 400	1 900
30234	170	310	57	657	865	1 500	2 000
32034 X	170	260	57	625	915	1 900	2 200
32234	170	310	91	1 075	1 630	1 500	2 000
32934	170	230	38	351	585	2 000	2 400
T4DB 170	170	230	32	307	440	2 000	2 600
M 336948/912	178.595	265.112	51.595	532	880	1 700	2 200
M 336949/912	179.934	265.112	51.595	532	880	1 700	2 200
30236	180	320	57	629	815	1 500	2 000
32036 X	180	280	64	793	1 160	1 700	2 200
32236	180	320	91	1 069	1 630	1 400	1 900

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
32936	180	250	45	435	735	1 900	2 200
T4DB 180	180	240	32	309	450	2 000	2 400
87737/87111	187.325	282.575	50.8	427	695	1 600	2 000
30238	190	340	60	763	1 000	1 400	1 800
32038 X	190	290	64	806	1 200	1 600	2 000
32238	190	340	97	1 267	1 930	1 300	1 800
32938	190	260	45	443	765	1 800	2 200
JM 738249/210	190	260	46	443	765	1 800	2 200
87750/87111	190.5	282.575	50.8	427	695	1 600	2 000
LL 639249/210	196.85	241.3	23.812	189	315	1 900	2 400
67981/67919	198.298	279.4	46.038	465	830	1 600	2 000
67982/67919	199.949	279.4	46.038	465	830	1 600	2 000
30240	200	360	64	845	1 120	1 300	1 700
32040 X	200	310	70	800	1 370	1 400	1 900
32240	200	360	104	1 300	2 000	1 300	1 700
32940	200	280	51	588	950	1 700	2 000
T4DB 200	200	270	37	401	600	1 700	2 200
67983/67920	203.2	282.575	46.038	465	830	1 600	2 000
67985/67920	206.375	282.575	46.038	465	830	1 600	2 000
H 242649/610	206.375	336.55	98.425	1 230	2 160	1 300	1 800
30244	220	400	72	1 059	1 400	1 200	1 600
32044 X	220	340	76	955	1 660	1 300	1 700
32244	220	400	114	1 720	2 700	1 100	1 500
32944	220	300	51	601	1 000	1 500	1 900
LM 245846/810	230.188	317.5	47.625	556	980	1 300	1 800
LM 245848/810	231.775	317.5	47.625	556	980	1 300	1 800
32048 X	240	360	76	989	1 800	1 200	1 600
32248	240	440	127	1 918	3 350	1 000	1 300
32948	240	320	51	624	1 080	1 400	1 700
T4EB 240	240	320	42	458	815	1 300	1 700

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
HH 953749/710	254	533.4	133.35	2 012	2 750	800	1 100
M 349547/510	255.6	342.9	57.15	698	1 400	1 200	1 600
M 249747/710	257.175	358.775	71.438	1 030	1 760	1 300	1 600
M 349549/510	257.175	342.9	57.15	698	1 400	1 200	1 600
32052 X	260	400	87	1 241	2 200	1 100	1 400
32252	260	480	137	2 340	3 650	900	1 200
32952	260	360	63.5	910	1 530	1 300	1 600
BT1B 332973	260	540	109	2 120	3 050	850	1 300
38880/38820	263.525	325.438	28.575	273	550	1 400	1 700
32056 X	280	420	87	1 288	2 360	1 000	1 300
32256	280	500	137	2 410	3 900	850	1 200
L 555249/210	292.1	374.65	47.625	539	1 140	1 100	1 500
32060 X	300	460	100	1 644	3 000	900	1 200
32260 J2/HA1	300	540	149	2 750	4 750	800	1 100
32960	300	420	76	1 126	2 240	950	1 300
LM 757049/010	304.8	406.4	63.5	775	1 700	1 000	1 300
HM 259048/010/HA4	317.5	447.675	85.725	1 363	2 700	900	1 200
32064 X	320	480	100	1 663	3 100	850	1 100
32264	320	580	159	3 353	5 500	750	1 000
32964	320	440	76	1 156	2 360	900	1 200
HM 261049/010	333.375	469.9	90.488	1 428	2 850	850	1 200
32968	340	460	76	1 163	2 400	850	1 200
LM 361649/610	342.9	450.85	66.675	1 000	2 200	900	1 200
LM 361649 A/610	343.154	450.85	66.675	1 000	2 200	900	1 200
HM 262749/710	346.075	488.95	95.25	1 533	3 150	850	1 100
431884 A	355.65	482.65	60.32	572	1 200	850	1 300
32972	360	480	76	1 191	2 550	800	1 100
L 865547/512	381	479.425	49.213	638	1 500	800	1 100
LM 567949/910/HA1	406.4	549.275	85.725	1 467	3 050	700	950
LM 869448/410	431.8	571.5	74.612	1 145	2 550	670	900

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
L 570649/610	457.2	573.088	74.612	1 205	3 000	670	900
LM 272235/210	457.2	615.95	85.725	1 593	3 800	600	800
LM 770949/910	457.2	603.25	85.725	1 541	3 400	630	850
BT1-8003/HA1	479.425	717.55	136.525	3 030	6 800	530	800
BT1B 332529/HA1	479.425	679.45	128.588	2 750	6 300	560	850
EE 243190/243250	482.6	634.873	80.962	1 584	3 650	600	800
LM 772748/710/HA1	488.95	634.873	84.138	1 450	3 650	600	850
EE 243196/243250/HA2	498.475	634.873	80.962	1 470	3 650	600	850
EE 982051/982900	520.7	736.6	88.9	1 650	3 350	530	750
BT1B 328017/HA4	536.575	820	152	3 910	7 800	450	670
M 276449/410	536.575	761.873	146.05	3 360	8 000	500	670
L 476549 AX/510	549.199	692.15	80.963	1 340	3 450	530	1 100
EE 843220/843290	558.8	736.6	88.108	1 963	4 150	500	670
LM 377449/410	558.8	736.6	104.775	2 482	5 700	500	670
BT1B 334140/HA4	660.4	1 000	152.4	4 652	9 500	360	480
L 281147/110	660.4	812.8	95.25	2 086	5 600	430	560
BT1B 332787/HA4	680	1 000	190	5 610	12 700	360	500
BT1B 332705/HA4	682.625	1 080	200	6 710	13 200	320	480
BT1B 332890/HA1	710	950	113	2 860	6 550	360	530
LM 283649/610/HA1	749.3	990.6	159.5	4 903	12 000	340	450
LL 483449/418	762	889	69.85	1 320	3 800	380	500
EE 763330/763410	838.2	1 041.4	93.663	2 140	5 200	320	430
BT1B 328214/HA5	900	1 180	122	3 960	9 150	260	360
BT1-8010/HA4	1 270	1 465	100	3 407	10 800	180	240

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
31305/DF	25	62	36.5	79.9	80	6 700	11 000
31306/DF	30	72	41.5	100	100	5 600	9 500
30307/DF	35	80	45.5	152	150	6 000	9 000
32010 X/DF	50	80	40	129	176	5 300	8 000
30311/DF	55	120	63	302	325	3 800	5 600
31311/DF	55	120	63	256	275	3 400	5 600
32014 X/DF	70	110	50	214	305	3 800	5 600
33014/DF	70	110	62	273	400	3 800	5 600
31315/DF	75	160	80	438	490	2 400	4 300
33015/DF	75	115	62	286	455	3 600	5 300
33015/DFC240	75	115	62	286	455	3 600	5 300
32016 X/DF	80	125	58	288	430	3 200	5 000
32216/DF	80	140	70.5	391	490	3 000	4 500
33116/DF	80	130	74	379	560	3 200	4 800
31317/DF	85	180	89	510	570	2 200	3 800
32017 X/DF	85	130	58	293	450	3 200	4 800
31318/DF	90	190	93	486	630	1 900	3 400
32018 X/DF	90	140	64	356	540	3 000	4 300
32218/DF	90	160	85	529	680	2 600	4 000
31319/DF	95	200	99	539	710	1 800	3 400
32219/DF	95	170	91	597	780	2 600	3 800
30220/DF	100	180	74	521	640	2 400	3 600
31320 X/DF	100	215	113	685	930	1 700	3 000
32020 X/DF	100	150	64	359	560	2 600	4 000
32220/DF	100	180	98	668	880	2 400	3 600
32021 X/DF	105	160	70	426	670	2 600	3 800
31322 X/DF	110	240	126	841	1 160	1 500	2 800
32022 X/DF	110	170	76	494	780	2 400	3 600
32022 X/DFC200	110	170	76	494	780	2 400	3 600
32222/DF	110	200	112	842	1 140	2 200	3 200

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
33122/DF	110	180	112	781	1 250	2 200	3 400
30224/DF	120	215	87	716	915	2 000	3 000
31324 X/DF	120	260	136	992	1 400	1 400	2 400
32024 X/DF	120	180	76	513	830	2 200	3 400
32224/DF	120	215	123	983	1 400	2 000	3 000
32324/DF	120	260	181	1 466	2 240	1 600	2 600
33024/DF	120	180	96	611	1 080	2 200	3 400
31326 X/DF	130	280	144	1 110	1 560	1 300	2 400
32226/DF	130	230	135.5	1 012	1 660	1 600	2 800
32926/DF	130	180	64	420	735	2 200	3 200
30228/DF	140	250	91.5	773	1 140	1 500	2 600
31328 X/DF	140	300	154	1 264	1 800	1 200	2 200
32028 X/DF	140	210	90	692	1 160	1 900	2 800
32228/DF	140	250	143.5	1 185	2 000	1 500	2 600
30230/DF	150	270	98	781	1 120	1 400	2 400
31330 X/DF	150	320	164	1 427	2 040	1 100	2 000
32030 X/DF	150	225	96	782	1 320	1 800	2 600
32230/DF	150	270	154	1 341	2 280	1 400	2 400
30232/DF	160	290	104	971	1 460	1 300	2 200
32032 X/DF	160	240	102	912	1 560	1 600	2 400
32232/DF	160	290	168	1 602	2 800	1 300	2 200
32034 X/DF	170	260	114	1 071	1 830	1 500	2 200
32234/DF	170	310	182	1 843	3 250	1 200	2 000
30236/DF	180	320	114	1 079	1 630	1 200	2 000
32036 X/DF	180	280	128	1 360	2 320	1 400	2 200
32236/DF	180	320	182	1 833	3 250	1 100	1 900
32936/DF	180	250	90	746	1 460	1 500	2 200
32038 X/DF	190	290	128	1 381	2 400	1 300	2 000
32938/DF	190	260	90	760	1 530	1 400	2 200
32040 X/DF	200	310	140	1 372	2 750	1 100	1 900

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
32240/DF	200	360	208	2 229	4 000	1 000	1 700
32044 X/DF	220	340	152	1 637	3 350	1 000	1 700
32244/DF	220	400	228	2 949	5 400	900	1 500
32944/DF	220	300	102	1 030	2 000	1 200	1 900
32048 X/DF	240	360	152	1 695	3 550	950	1 600
32248/DF	240	440	254	3 289	6 700	800	1 300
32052 X/DF	260	400	174	2 127	4 400	850	1 400
32252/DF	260	480	274	4 013	7 350	750	1 200
32056 X/DF	280	420	174	2 208	4 750	800	1 300
32256/DF	280	500	274	2 410	7 800	700	1 200
32060 X/DF	300	460	200	2 818	6 000	750	1 200
32064 X/DF	320	480	200	2 852	6 200	700	1 100
32964/DF	320	440	152	1 982	4 650	750	1 200
32968/DF	340	460	152	1 995	4 800	700	1 200
32972/DF	360	480	152	2 043	5 100	670	1 100

Designation	Principal dimensions				Basic load ratings		Design type/Features
					dynamic	static
	d[mm]	D[mm]	T[mm]	C[mm]	C[kN]	C0[kN]
331945	228.6	488.95	254	152.4	3 143	4 500	TDO/D
BT2B 328130	260	480	284	220	4 330	7 350	TDO
BT2B 328187/HA2	260.35	422.275	178.592	139.7	2 240	4 050	TDO/D
BT2B 332504/HA2	300.038	422.275	174.625	136.525	2 177	4 750	TDO/XDC
BT2B 332516 A/HA1	317.5	447.675	180.975	146.05	2 521	5 400	TDO/XDC
331775 B	333.375	469.9	190.5	152.4	2 642	5 700	TDO/XDC
BT2B 332830	340	460	160	128	2 196	4 900	TDO/D
331981	346.075	488.95	200.025	158.75	2 835	6 300	TDO/D
BT2B 332506/HA2	355.6	501.65	155.575	107.95	1 976	4 250	TDO/D
BT2B 332831	360	480	160	128	2 211	5 000	TDO/D
BT2B 332603/HA1	368.249	523.875	214.312	169.862	3 380	7 500	TDO/D
331606 A	371.475	501.65	155.575	107.95	1 976	4 250	TDO/XDC
331197 A	384.175	546.1	222.25	177.8	3 724	8 300	TDO/D
BT2-8143/HA1	400	540	170	135	2 782	6 300	TDO/D
BT2B 328389	406.4	539.75	142.875	101.6	1 817	4 400	TDO/XDC
331656	415.925	590.55	244.475	193.675	4 175	9 650	TDO/XDC
BT2B 332237 A/HA1	431.8	571.5	192.088	146.05	2 847	6 950	TDO/XDC
BT2B 332604/HA1	431.8	571.5	155.575	111.125	1 980	5 100	TDO/D
BT2B 332176 A	447.675	635	257.175	206.375	4 400	11 000	TDO/XDC
331657	479.425	679.45	276.225	222.25	5 010	12 700	TDO/XDC
331605 B	498.475	634.873	177.8	142.875	2 750	7 350	TDO/XDC
BT2B 332605 A/HA1	501.65	711.2	292.1	231.775	5 500	13 700	TDO/XDC
BT2B 332446	536.575	761.873	311.15	247.65	6 270	16 000	TDO/DC
331640 A	558.8	736.6	225.425	177.8	4 290	11 600	TDO/DC
BT2B 332447	571.5	812.8	333.375	263.525	6 440	16 000	TDO.1/DC
331576 B	602.945	787.4	206.375	158.75	4 020	10 600	TDO/D
331500	609.6	820	206.375	158.75	4 020	10 600	TDO/D
BT2B 328028/HA1	711.2	914.4	190.5	139.7	3 800	9 650	TDO/D
331554 A	723.9	914.4	187.325	139.7	3 800	9 650	TDO/D3
BT2B 331554 B/HA1	723.9	914.4	187.325	139.7	3 800	9 650	TDO/D3

Designation	Principal dimensions				Basic load ratings		Design type/Features
					dynamic	static
	d[mm]	D[mm]	T[mm]	C[mm]	C[kN]	C0[kN]
331780 A	762	965.2	187.325	133.35	3 580	9 800	TDO/D
BT2B 332625	774.962	1 016	266.7	209.63	7 197	18 000	TDO/D
BT2B 332501/HA5	914.4	1 066.8	139.7	101.6	2 600	8 000	TDO.1/D
BT2B 332780/HA5	1 160	1 540	400	290	14 200	38 000	TDO.1/D
BT2B 328339/HA4	1 250	1 500	250	190	7 370	22 400	TDO.1/D

TAPERED ROLLER BEARINGS

Product Information

Contact us

Inquiries about technology　product specifications

Inquiries about purchase

Inquiries about technical trouble repair

Inquiries about others

CONTACT US

Tapered Roller Bearings

TAPERED ROLLER BEARINGS

Product Information

Contact us
