NEEDLE ROLLER THRUST BEARINGS

The needle roller thrust bearing is equipped with a shaped cage, which can reliably fix and guide a large number of needles. Needle roller thrust bearings provide very high stiffness in a very small axial space. In applications where the surfaces of adjacent machine parts can be used as raceways, needle thrust bearings occupy less space than traditional thrust washers.

Related industrial field

Machine tool Cars and light trucks Trucks, trailers and buses Two wheelers and three wheelers

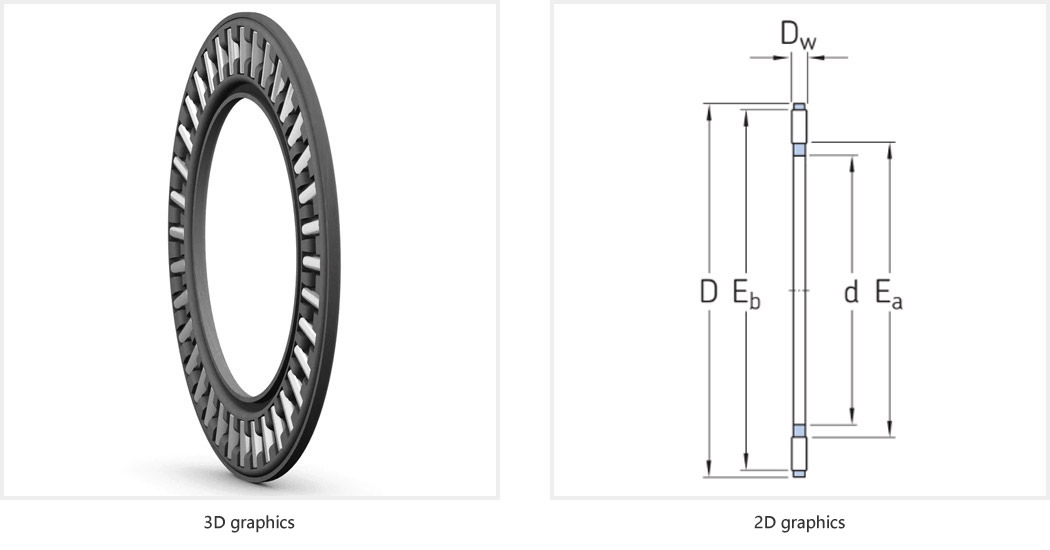

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	Dw[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
AXK 0414 TN	4	14	2	4.15	8.3	7 500	15 000
AXK 0515 TN	5	15	2	4.5	9.5	6 700	14 000
AXK 0619 TN	6	19	2	6.3	16	6 000	12 000
AXK 0821 TN	8	21	2	7.2	20	5 600	11 000
AXK 1024	10	24	2	8.5	26	5 300	10 000
AXW 10	10	27	2	8.5	26	5 300	10 000
AXK 1226	12	26	2	9.15	30	5 000	10 000
AXW 12	12	29	2	9.15	30	5 000	10 000
AXK 1528	15	28	2	10.4	37.5	4 800	9 500
AXW 15	15	31	2	10.4	37.5	4 800	9 500
AXK 1730	17	30	2	11	40.5	4 500	9 500
AXK 2035	20	35	2	12	47.5	4 300	8 500
AXW 20	20	38	2	12	47.5	4 300	8 500
AXK 2542	25	42	2	13.4	60	3 800	7 500
AXW 25	25	45	2	13.4	60	3 800	7 500
AXK 3047	30	47	2	15	72	3 600	7 000
AXW 30	30	50	2	15	72	3 600	7 000
AXK 3552	35	52	2	16.6	83	3 200	6 300
AXW 35	35	55	2	16.6	83	3 200	6 300
AXK 4060	40	60	3	25	114	2 800	5 600
AXW 40	40	63	3	25	114	2 800	5 600
AXK 4565	45	65	3	27	127	2 600	5 300
AXW 45	45	68	3	27	127	2 600	5 300
AXK 5070	50	70	3	28.5	143	2 400	5 000
AXW 50	50	73	3	28.5	143	2 400	5 000
AXK 5578	55	78	3	34.5	186	2 200	4 300
AXK 6085	60	85	3	37.5	232	2 200	4 300
AXK 6590	65	90	3	39	255	2 000	4 000
AXK 7095	70	95	4	49	255	1 800	3 600
AXK 75100	75	100	4	50	265	1 700	3 400

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	Dw[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
AXK 80105	80	105	4	51	280	1 700	3 400
AXK 85110	85	110	4	52	290	1 700	3 400
AXK 90120	90	120	4	65.5	405	1 500	3 000
AXK 100135	100	135	4	76.5	560	1 400	2 800
AXK 110145	110	145	4	81.5	620	1 300	2 600
AXK 120155	120	155	4	86.5	680	1 300	2 600
AXK 130170	130	170	5	112	830	1 100	2 200
AXK 140180	140	180	5	116	900	1 000	2 000
AXK 150190	150	190	5	120	950	1 000	2 000
AXK 160200	160	200	5	125	1 000	950	1 900
