THRUST BALL BEARINGS

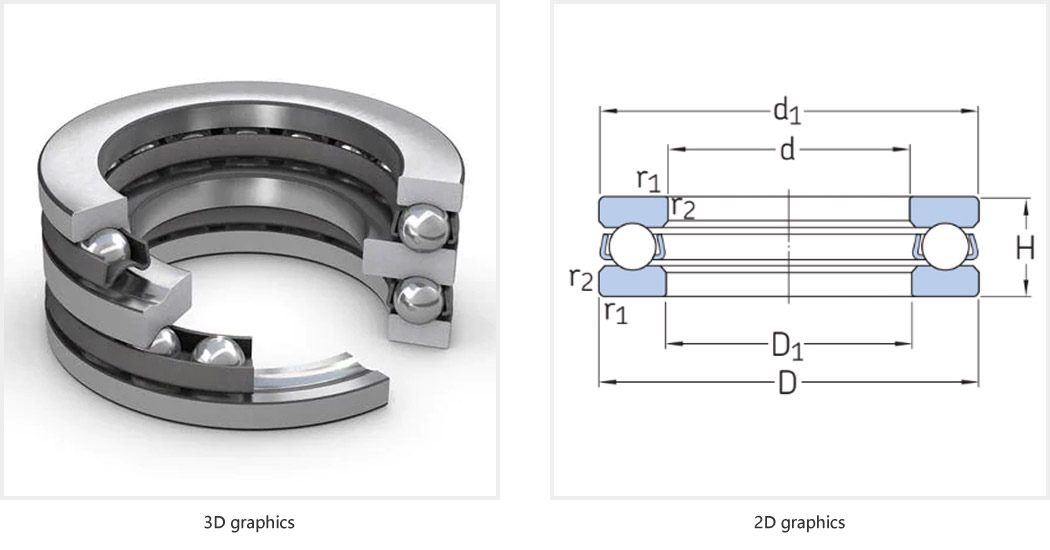

The thrust ball bearing comes in single-direction and double-direction type, with the former able to withstand axial load in a single direction, and the latter able to withstand load from both directions.

Related industrial field

Automotive

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
BA 3	3	8	3.5		0.806	0.72	26 000	36 000
BA 4	4	10	4		0.761	0.72	22 000	30 000
BA 5	5	12	4		0.852	0.965	20 000	28 000
BA 6	6	14	5		1.78	1.92	17 000	24 000
BA 7	7	17	6		2.51	2.9	14 000	19 000
BA 8	8	19	7		3.19	3.8	12 000	17 000
BA 9	9	20	7		3.12	3.8	12 000	16 000
51100	10	24	9		8.71	12.2	9 500	13 000
51200	10	26	11		12.7	18.6	8 000	11 000
51101	12	26	9		10.4	16.6	9 000	13 000
51201	12	28	11		13.3	20.8	8 000	11 000
53201	12	28	11.4	13	13.3	20.8	8 000	11 000
51102	15	28	9		10.6	18.3	8 500	12 000
51202	15	32	12		15.9	25	7 000	10 000
53202	15	32	13.3	15	15.9	25	7 000	10 000
51103	17	30	9		11.4	21.2	8 500	12 000
51203	17	35	12		16.3	27	6 700	9 500
53203	17	35	13.2	15	16.3	27	6 700	9 500
51104	20	35	10		15.1	29	7 500	10 000
51204	20	40	14		21.2	37.5	6 000	8 000
53204	20	40	14.7	17	21.2	37.5	5 600	8 000
51105	25	42	11		18.2	39	6 300	9 000
51205	25	47	15		26.5	50	5 300	7 500
51305	25	52	18		34.5	60	4 500	6 300
51405	25	60	24		42.3	67	3 600	5 000
53205	25	47	16.7	19	26.5	50	5 000	7 000
51106	30	47	11		19	43	6 000	8 500
51206	30	52	16		25.1	51	4 800	6 700
51306	30	60	21		35.8	65.5	3 800	5 300
51406	30	70	28		70.2	122	3 000	4 300

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
53206	30	52	17.8	20	25.1	51	4 500	6 300
53306	30	60	22.6	25	35.8	65.5	3 800	5 300
51107	35	52	12		19.9	51	5 600	7 500
51207	35	62	18		35.1	73.5	4 000	5 600
51307	35	68	24		49.4	96.5	3 400	4 800
51407	35	80	32		76.1	137	2 600	3 600
53207	35	62	19.9	22	35.1	73.5	4 000	5 600
53307	35	68	25.6	28	49.4	96.5	3 200	4 500
51108	40	60	13		25.5	63	5 000	7 000
51208	40	68	19		44.2	96.5	3 800	5 300
51308	40	78	26		61.8	122	3 000	4 300
51408	40	90	36		95.6	183	2 400	3 400
53208	40	68	20.3	23	44.2	96.5	3 600	5 300
53308	40	78	28.5	31	61.8	122	2 800	4 000
53408	40	90	38.2	42	95.6	183	2 400	3 200
51109	45	65	14		26.5	69.5	4 500	6 300
51209	45	73	20		39	86.5	3 600	5 000
51309	45	85	28		76.1	153	2 800	4 000
51409	45	100	39		124	240	2 200	3 000
53209	45	73	21.3	24	39	86.5	3 400	4 800
53309	45	85	30.1	33	76.1	153	2 600	3 800
51110	50	70	14		27	75	4 300	6 300
51210	50	78	22		49.4	116	3 400	4 500
51310	50	95	31		81.9	170	2 600	3 600
51410	50	110	43		159	340	2 000	2 800
53210	50	78	23.5	26	49.4	116	3 200	4 500
53310	50	95	34.3	37	81.9	170	2 400	3 400
53410	50	110	45.6	50	159	340	1 900	2 600
51111	55	78	16		30.2	81.5	3 800	5 300
51211	55	90	25		58.5	134	2 800	4 000

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
51311	55	105	35		101	224	2 200	3 200
51411	55	120	48		195	400	1 800	2 400
53211	55	90	27.3	30	58.5	134	2 800	3 800
53311	55	105	39.3	42	101	224	2 200	3 000
53411	55	120	50.5	55	195	400	1 700	2 400
51112	60	85	17		41.6	122	3 600	5 000
51212	60	95	26		59.2	140	2 800	3 800
51312	60	110	35		101	224	2 200	3 000
51412 M	60	130	51		199	430	1 600	2 200
53212	60	95	28	31	59.2	140	2 600	3 600
53312	60	110	38.3	42	101	224	2 000	3 000
51113	65	90	18		37.7	108	3 400	4 800
51213	65	100	27		60.5	150	2 600	3 600
51313	65	115	36		106	240	2 000	3 000
51413 M	65	140	56		216	490	1 500	2 200
53213	65	100	28.7	32	60.5	150	2 600	3 600
53313	65	115	39.4	43	106	240	2 000	2 800
51114	70	95	18		40.3	120	3 400	4 500
51214	70	105	27		62.4	160	2 600	3 600
51314	70	125	40		135	320	1 900	2 600
51414 M	70	150	60		234	550	1 400	2 000
53214	70	105	28.8	32	62.4	160	2 600	3 600
53314	70	125	44.2	48	135	320	1 800	2 600
51115	75	100	19		44.2	134	3 200	4 300
51215	75	110	27		63.7	170	2 400	3 400
51315	75	135	44		163	390	1 700	2 400
51415 M	75	160	65		251	610	1 300	1 800
53215	75	110	28.3	32	63.7	170	2 400	3 400
53315	75	135	48.1	52	163	390	1 700	2 400
51116	80	105	19		44.9	140	3 000	4 300

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
51216	80	115	28		76.1	208	2 400	3 400
51316	80	140	44		159	390	1 700	2 400
51416	80	170	68		302	750	1 200	1 700
51416 M	80	170	68		302	750	1 200	1 700
53216	80	115	29.5	33	76.1	208	2 400	3 200
53316	80	140	47.6	52	159	390	1 600	2 200
51117	85	110	19		44.9	146	3 000	4 300
51217	85	125	31		97.5	275	2 200	3 000
51317	85	150	49		174	405	1 600	2 200
51417 M	85	180	72		286	750	1 200	1 600
53217	85	125	33.1	37	97.5	275	2 000	3 000
53317	85	150	53.1	58	174	405	1 500	2 000
51118	90	120	22		59.2	208	2 600	3 800
51218	90	135	35		112	290	2 000	2 800
51318	90	155	50		182	440	1 500	2 200
51418 M	90	190	77		307	815	1 100	1 500
53218	90	135	38.5	42	112	290	1 900	2 600
53318	90	155	54.6	59	182	440	1 400	2 000
51120	100	135	25		80.6	265	2 400	3 200
51220	100	150	38		119	325	1 800	2 400
51320	100	170	55		225	570	1 400	1 900
51420 M	100	210	85		371	1 060	950	1 400
53220	100	150	40.9	45	119	325	1 700	2 400
53320	100	170	59.2	64	225	570	1 300	1 800
53420 M	100	210	90	98	371	1 060	950	1 300
51122	110	145	25		83.2	285	2 200	3 200
51222	110	160	38		125	365	1 700	2 400
51322 M	110	190	63		291	800	1 200	1 700
53222	110	160	40.2	45	125	365	1 700	2 400
53322 M	110	190	67.2	72	291	800	1 200	1 600

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
51124	120	155	25		85.2	305	2 200	3 000
51224	120	170	39		127	390	1 600	2 200
51324 M	120	210	70		332	980	1 100	1 500
53324 M	120	210	74.1	80	332	980	1 000	1 500
51126	130	170	30		119	440	1 900	2 600
51226	130	190	45		186	585	1 400	2 000
51326 M	130	225	75		351	1 060	1 000	1 400
53226	130	190	47.9	53	186	585	1 300	1 800
51128	140	180	31		111	440	1 800	2 600
51228	140	200	46		208	630	1 400	1 900
51328 M	140	240	80		416	1 370	950	1 300
53228	140	200	48.6	55	190	620	1 300	1 800
51130 M	150	190	31		111	440	1 700	2 400
51230 M	150	215	50		247	800	1 300	1 800
51330 M	150	250	80		423	1 460	900	1 300
51132 M	160	200	31		112	465	1 700	2 400
51232 M	160	225	51		247	800	1 200	1 700
51332 M	160	270	87		442	1 600	850	1 200
51134 M	170	215	34		133	540	1 600	2 200
51234 M	170	240	55		281	980	1 100	1 600
51334 M	170	280	87		449	1 700	800	1 100
51136 M	180	225	34		135	570	1 500	2 200
51236 M	180	250	56		296	1 080	1 100	1 500
51336 M	180	300	95		520	2 000	750	1 100
51138 M	190	240	37		172	710	1 400	2 000
51238 M	190	270	62		338	1 250	1 000	1 400
51140 M	200	250	37		168	710	1 400	1 900
51240 M	200	280	62		332	1 250	1 000	1 400
51340 M	200	340	110		624	2 600	630	900
51144 M	220	270	37		178	800	1 300	1 900

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
51244 M	220	300	63		358	1 460	950	1 300
51148 M	240	300	45		234	1 040	1 100	1 600
51248 M	240	340	78		449	1 960	800	1 100
51152 M	260	320	45		238	1 100	1 100	1 500
51252 M	260	360	79		488	2 240	750	1 100
51156 M	280	350	53		319	1 460	950	1 300
51256 M	280	380	80		488	2 320	750	1 000
51160 M	300	380	62		364	1 760	850	1 200
51260 M	300	420	95		585	3 000	630	850
51164 M	320	400	63		371	1 860	800	1 100
51264 F	320	440	95		572	3 000	600	850
51264 M	320	440	95		572	3 000	600	850
51168 M	340	420	64		377	1 960	800	1 100
51268 F	340	460	96		605	3 200	600	800
51368 F	340	540	160		1 040	5 850	400	560
51172 F	360	440	65		390	2 080	750	1 100
51272 F	360	500	110		741	4 150	530	750
59172 F	360	440	48		255	1 500	900	1 200
351793	380	460	36		186	1 140	1 000	1 400
51176 F	380	460	65		397	2 200	750	1 000
51276 F	380	520	112		728	4 150	500	700
59176 F	380	460	48		255	1 530	850	1 200
51080 F	400	440	30		124	900	1 100	1 600
51180 F	400	480	65		403	2 280	700	1 000
51280 F	400	540	112		761	4 500	500	700
59180 F	400	480	48		260	1 630	850	1 200
51084 F	420	460	30		125	880	1 100	1 600
51184 F	420	500	65		410	2 400	700	1 000
51284 F	420	580	130		884	5 500	430	600
59184 F	420	500	48		265	1 700	850	1 200

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
51088 F	440	480	30		127	915	1 100	1 500
51188 F	440	540	80		527	3 250	600	850
51288 F	440	600	130		904	5 700	430	600
59188 F	440	540	60		238	1 500	700	1 000
51092 F	460	500	30		130	1 040	1 100	1 500
51192 F	460	560	80		527	3 250	600	800
51292 F	460	620	130		923	5 850	430	600
59192 F	460	560	60		242	1 530	700	950
51096 F	480	520	30		133	1 000	1 000	1 500
51196 F	480	580	80		540	3 550	560	800
51296 F	480	650	135		995	6 550	400	560
59196 F	480	580	60		442	2 800	670	950
510/500 F	500	540	30		133	1 120	1 000	1 400
511/500 F	500	600	80		553	3 600	560	800
512/500 F	500	670	135		1 010	6 800	380	530
591/500 F	500	600	60		449	2 900	670	950
510/530 F	530	580	38		203	1 600	850	1 200
511/530 F	530	640	85		650	4 400	530	750
591/530 F	530	640	67		468	3 150	600	850
510/560 F	560	610	38		203	1 660	850	1 200
511/560 F	560	670	85		650	4 650	500	700
591/560 F	560	670	67		475	3 250	600	800
350769	600	800	90		676	5 000	450	630
510/600 F	600	650	38		212	1 800	800	1 100
511/600 F	600	710	85		663	4 800	500	700
BD1-8000	600	870	118		1 120	8 000	220	300
510/630 F	630	680	38		221	1 930	800	1 100
511/630 F	630	750	95		728	5 400	450	630
591/630 F	630	750	73		540	4 000	530	750
511/670 F	670	800	105		852	6 700	400	560

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
511/670 M	670	800	105		852	6 700	400	560
591/670 F	670	800	78		540	4 150	480	670
510/710 F	710	780	53		358	2 850	600	850
511/710 F	710	850	112		936	7 650	380	530
510/750 F	750	820	53		364	3 050	600	850
511/750 M	750	900	120		1 010	8 650	340	480
591/750 M	750	900	90		741	6 200	400	600
510/800 F	800	870	53		371	3 200	560	800
591/800 M	800	950	90		761	6 550	400	560
510/850 M	850	920	53		377	3 450	560	800
511/850 F	850	1 000	120		1 060	9 500	320	450
591/850 M	850	1 000	90		761	6 800	380	560
510/900 M	900	980	63		527	4 900	480	670
511/900 F	900	1 060	130		1 120	10 400	300	430
511/900 M	900	1 060	130		1 120	10 400	300	430
591/900 M	900	1 060	95		630	7 650	360	500
510/950 M	950	1 080	63		540	5 100	480	670
511/950 F	950	1 120	135		1 330	12 000	280	400
591/950 M	950	1 120	103		852	8 150	340	480
510/1000 M	1 000	1 090	70		572	5 500	430	600
511/1000 F	1 000	1 180	140		1 330	13 200	260	380
591/1000 M	1 000	1 180	109		923	9 150	320	430
510/1060 M	1 060	1 150	70		572	5 850	430	600
511/1060 M	1 060	1 250	150		1 430	15 000	240	340
591/1060 F	1 060	1 250	115		1 010	10 400	300	400
511/1120 F	1 120	1 320	160		1 530	16 300	220	320
511/1180 F	1 180	1 400	175		1 780	20 000	200	280
BD1B 351890 A	1 380	1 535	130		1 330	16 300	240	340
511/1400 F	1 400	1 630	180		1 820	22 000	180	260
240930		60	13		25.5	63	5 000	7 000
